AWD models

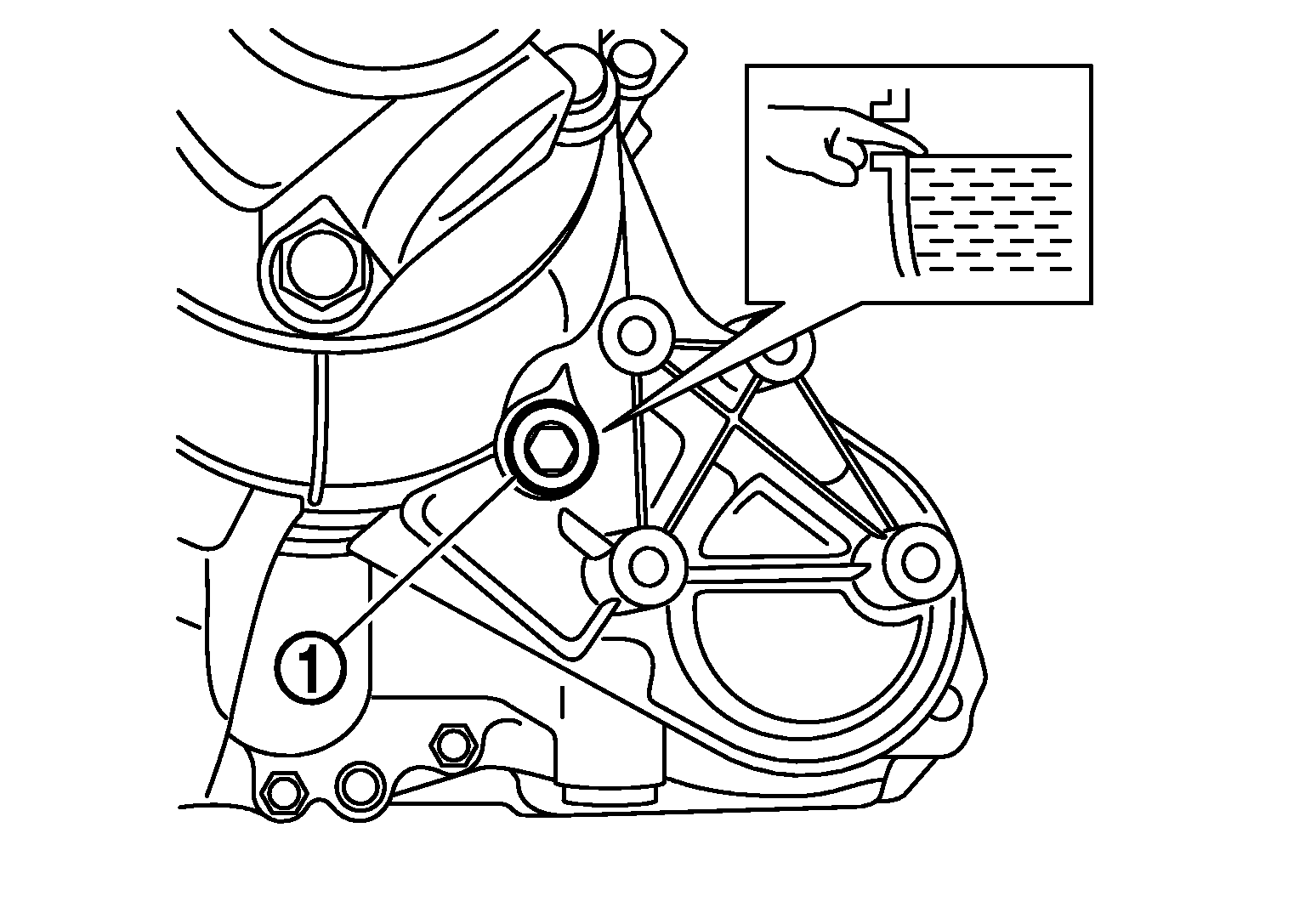

  1. Remove filler plug SYMBOL and gasket. Then fill fluid up to mounting hole for the filler plug.
    GNSJPDIE0129Z-129Courtesy of NISSAN NORTH AMERICA, INC.

    Recommended fluid and capacity

    : Refer to MAINTENANCE : Recommended Fluid and Lubricants .
    CAUTION: Carefully fill the fluid. (Fill up for approximately 3 minutes.)
  2. Leave the vehicle for 3 minutes, and check the fluid level again.
  3. Set a gasket onto filler plug, and install it to transfer assembly.
    CAUTION: Never reuse gasket.
  4. Tighten filler plug to the specified torque. Refer to TRANSFER FRONT CASE AND REAR CASE : Exploded View .
