Models With Distance Control Assist System

Switch Name and Function

DCA/LDP/Blind Spot Intervention

Courtesy of NISSAN NORTH AMERICA, INC.

Menu Displayed by Pressing Each Switch

SYSTEM DISPLAY

Courtesy of NISSAN NORTH AMERICA, INC.

DISPLAY AND WARNING (DCA/LDP/BLIND SPOT INTERVENTION)

When the dynamic driver assistance switch is pressed while the engine is running, the DCA/LDP/Blind Spot Intervention system operates the system for which ON is selected with the integral switch.

System status	Condition	Display on combination meter	Indicator	Buzzer
When the dynamic driver assistance switch is turned ON with settings of DCA system, LDP system and Blind Spot Intervention system OFF	--	Courtesy of NISSAN NORTH AMERICA, INC.	White	Beep
		Unavailable Select Driving Aids in Settings
DCA/LDP/Blind Spot Intervention OFF (PFCW/LDW/BSW are OFF)	--	Courtesy of NISSAN NORTH AMERICA, INC.	--	--

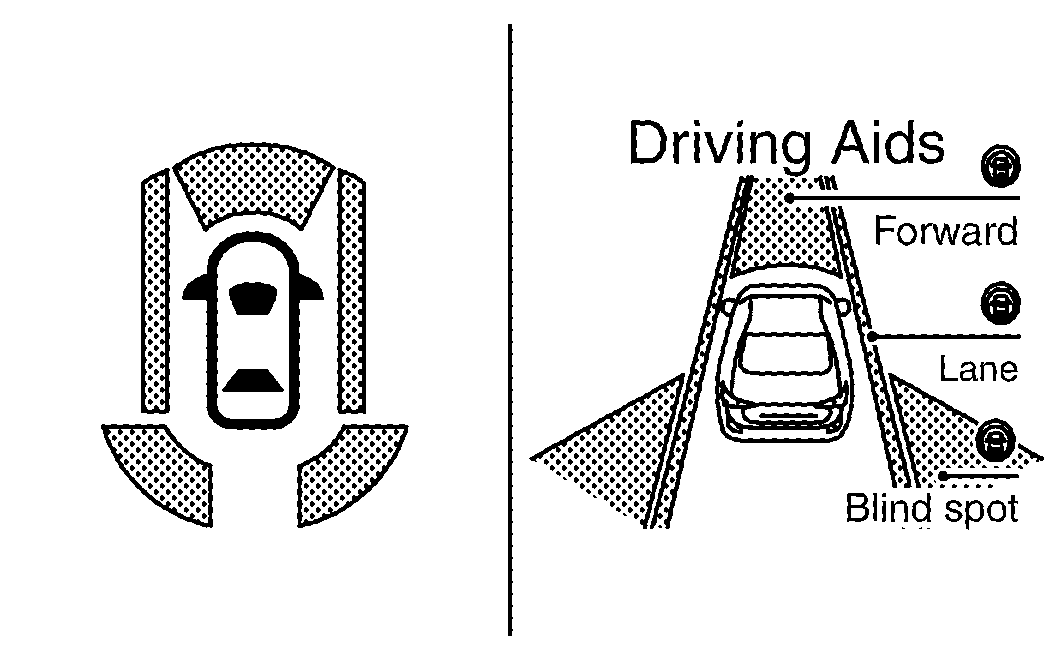

DCA/LDP/Blind Spot Intervention ON	System ON	Courtesy of NISSAN NORTH AMERICA, INC.	Green	--

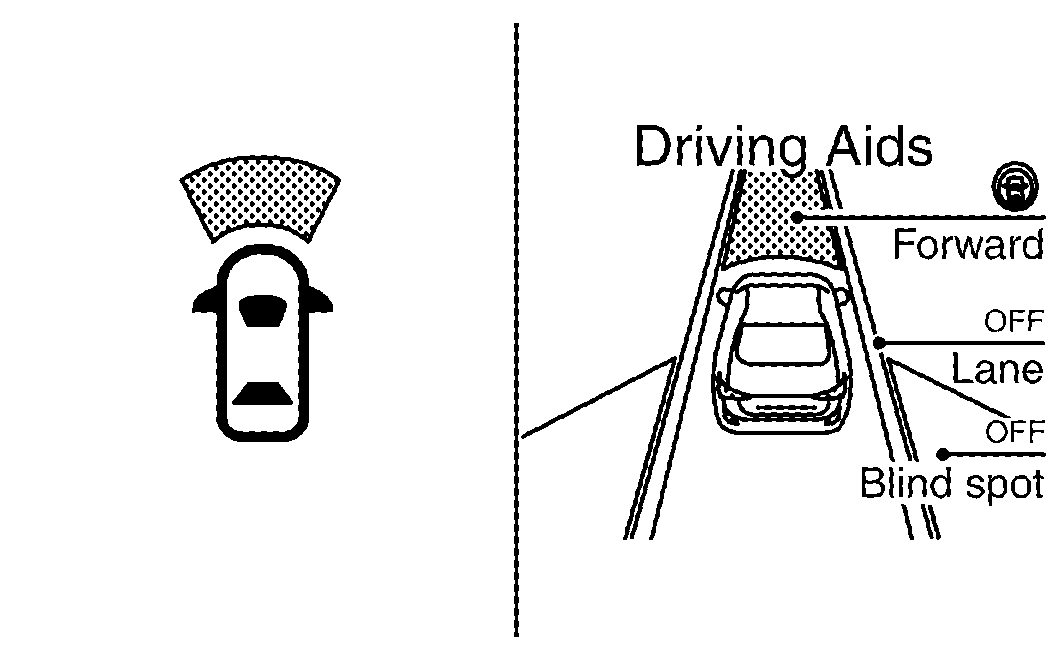

DCA ON	System ON	Courtesy of NISSAN NORTH AMERICA, INC.	Green	--
LDP ON	System ON	Courtesy of NISSAN NORTH AMERICA, INC.	Green	--

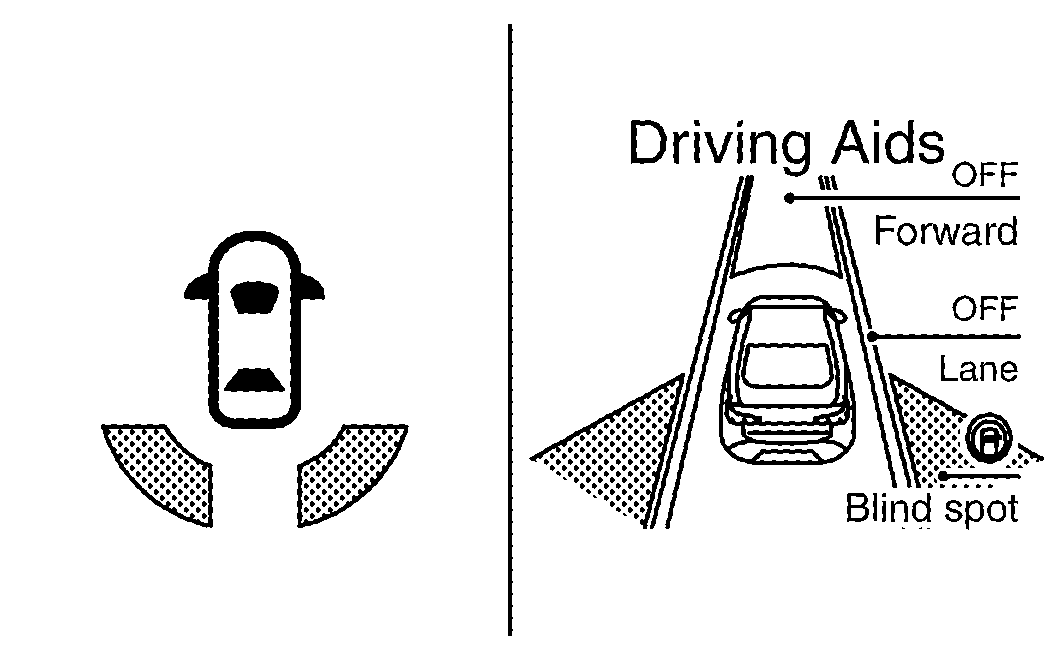

Blind Spot Intervention ON	System ON	Courtesy of NISSAN NORTH AMERICA, INC.	Green	--
DCA/LDP/Blind Spot Intervention are malfunction	System malfunction	Courtesy of NISSAN NORTH AMERICA, INC.	Yellow	Beep
		Courtesy of NISSAN NORTH AMERICA, INC.
		Malfunction See Owner's Manual
Operation conditions not satisfied (dirt around the distance sensor)	The DCA system is automatically canceled. NOTE: The system operates if the dynamic driver assistance switch is turned OFF=>ON after the condition improves	--	OFF	Beep
		Courtesy of NISSAN NORTH AMERICA, INC.	Green
		Unavailable Front Radar Obstruction
Accelerator pedal high temperature		--	OFF	Beep
		Courtesy of NISSAN NORTH AMERICA, INC.	Green
		Unavailable High Accelerator Temperature
Lane camera unit high temperature	The LDP/Blind Spot Intervention system is automatically canceled. NOTE: The system operates if the dynamic driver assistance switch is turned OFF=>ON after the condition improves	--	OFF	Beep
		Courtesy of NISSAN NORTH AMERICA, INC.	Green
		Unavailable High Cabin Temperature
Dirt around the side radar	The Blind Spot Intervention system is automatically canceled. NOTE: The system operates if the dynamic driver assistance switch is turned OFF=>ON after the condition improves	--	OFF	Beep
		Courtesy of NISSAN NORTH AMERICA, INC.	Green
		Unavailable Side Radar Obstruction
When the VDC or ABS (including the TCS) operates When the VDC is turned OFF When the drive mode select switch is in SNOW position	The DCA/LDP/Blind Spot Intervention system is automatically canceled. NOTE: The system operates if the dynamic driver assistance switch is turned OFF=>ON after the condition improves	--	OFF	Beep
		Courtesy of NISSAN NORTH AMERICA, INC.	Green
		Currently unavailable

• DCA operation

  Approach Warning

  • If own vehicle comes closer to the vehicle ahead due to rapid deceleration of that vehicle or if another vehicle cuts in, the system warns the driver with the chime and DCA system display. Decelerate by depressing the brake pedal to maintain a safe vehicle distance if:
    • The vehicle ahead detection indicator blinks.
    • The chime sounds.
  • The warning chime may not sound in some cases when there is a short distance between vehicles. Some examples are:
    • When the vehicles are traveling at the same speed and the distance between vehicles is not changing
    • When the vehicle ahead is traveling faster and the distance between vehicles is increasing
    • When a vehicle cuts in near own vehicle
  • The warning chime will not sound when own vehicle approaches vehicles that are parked or moving slowly.

    Condition	Action
    	Dynamics action	Display on combination meter	Indicator	Buzzer
    System ON	--	Courtesy of NISSAN NORTH AMERICA, INC.	Green	--

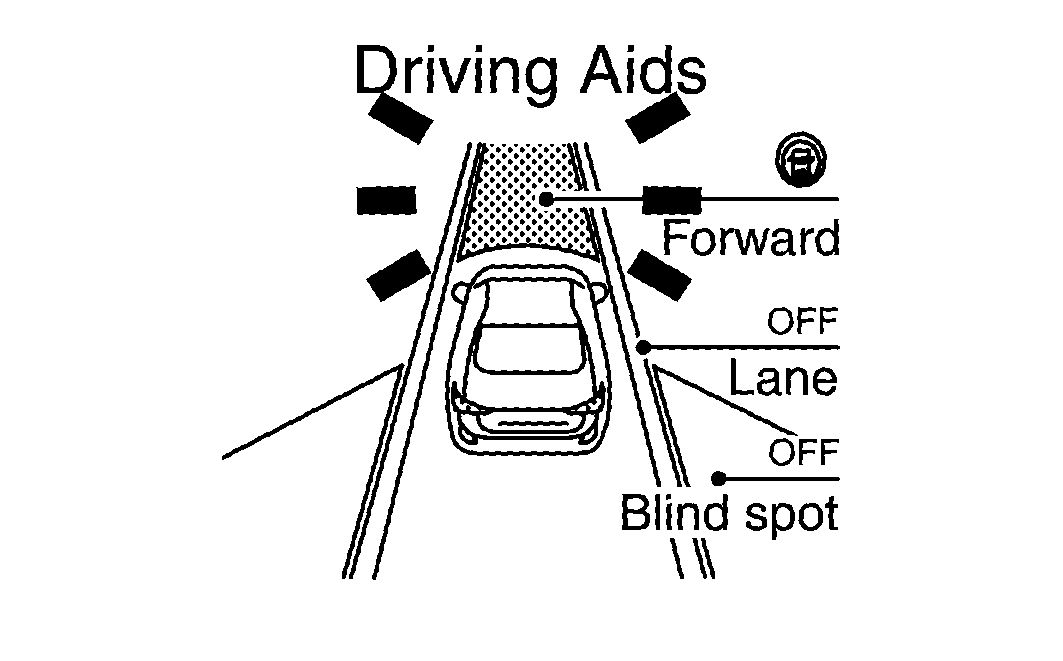

    When the system detected vehicle ahead When the system judges that the brake operation by the driver is necessary	Accelerator pedal actuation Operates brake	Courtesy of NISSAN NORTH AMERICA, INC.	Yellow (Blink)	Beep
    		Courtesy of NISSAN NORTH AMERICA, INC.	Yellow (Blink)

• LDP operation

  Vehicle condition/ Driver's operation			Action
  Vehicle speed (Approx.) [km/h (MPH)]	Turn signal condition	Status of vehicle close to lane marker	Yawing control	Indication on the combination meter	Indicator	Steering vibration
  Less than Approx. 60 km/h (37 MPH)	--	Close to lane marker	OFF	Courtesy of NISSAN NORTH AMERICA, INC.	Green	--
  Approx. 70 km/h (45 MPH) or more	Turn signal OFF Turn signal ON (Opposite to the deviate side)	Close to lane marker	ON	Courtesy of NISSAN NORTH AMERICA, INC.	Yellow (Blink)	ON
  	Turn signal ON (Deviate side)	Close to lane marker	OFF	Courtesy of NISSAN NORTH AMERICA, INC.	Green	--
  	Turn signal OFF Turn signal ON (Opposite to the deviate side)	Close to lane marker with soft braking	OFF	Courtesy of NISSAN NORTH AMERICA, INC.	Yellow (Blink)	ON

  NOTE: After the operating conditions of warning are satisfied, the warning continues until the vehicle speed reaches approximately 60 km/h (37 MPH). Refer to System Description .

• Blind Spot Intervention operation

  Vehicle condition/ Driver's operation			Action
  Vehicle speed (Approx.) [km/h (MPH)]	Status of vehicle detection within detection area	Status of approach to adjacent lane	Indication on the Blind Spot Intervention indicator	Yaw control	Indication on the combination meter	Indicator	Buzzer
  Less than approx. 60 (37)	--	--	OFF	OFF	Courtesy of NISSAN NORTH AMERICA, INC.	Green	OFF
  Approx. 60 (37) or more	Vehicle is not detected	--	OFF	OFF	Courtesy of NISSAN NORTH AMERICA, INC.	Green	OFF
  	Vehicle is detected	Not approaching	ON	OFF	Courtesy of NISSAN NORTH AMERICA, INC.	Green	OFF

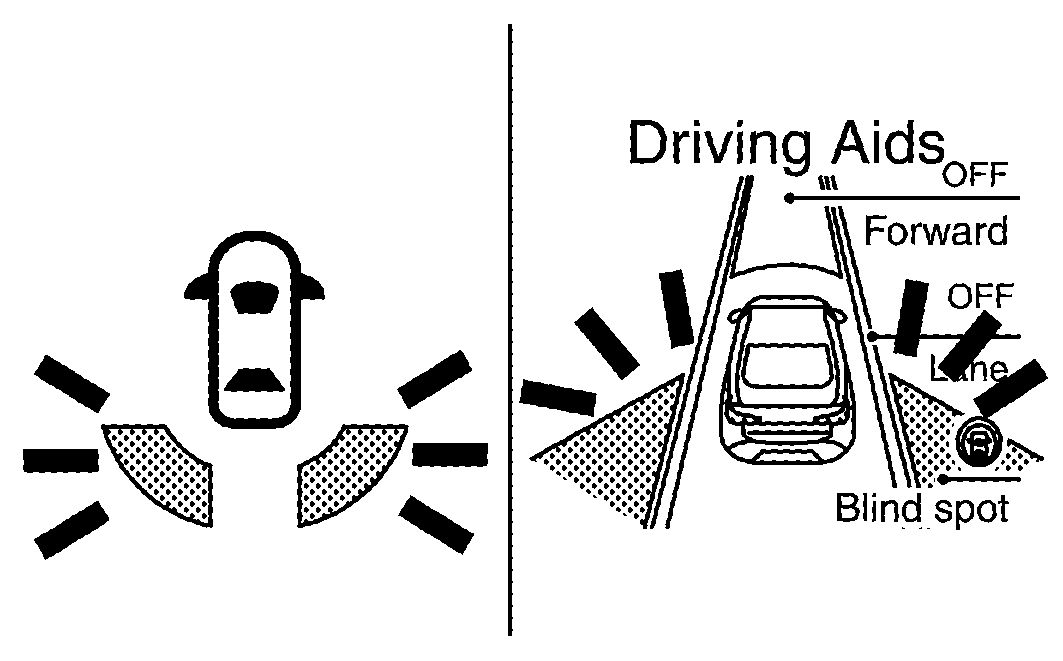

  	Vehicle is detected	Approaching	Blink	ON	Courtesy of NISSAN NORTH AMERICA, INC.	Yellow (Blink)	Short continuous beeps

  NOTE:

  • If vehicle speed exceeds approximately 32 km/h (20 MPH), BSW function operates until the vehicle speed becomes lower than approximately 29 km/h (18 MPH).
  • Time shown in the figure is approximate time.
  • Always Blind Spot Intervention system operates together with BSW system. Whenever Blind Spot Intervention system is turned ON by pushing the dynamic driver assistance switch, BSW system also be turned on even if the BSW system is turned off.
