Sub Motor Angle Sensor Connector End View (E94)

Connector Types:  RH06FB

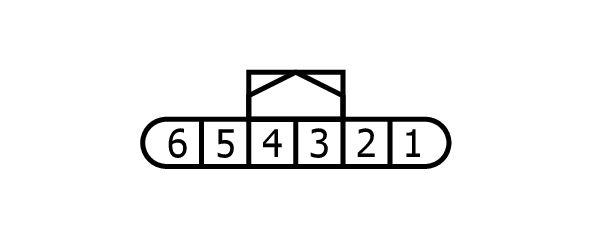

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

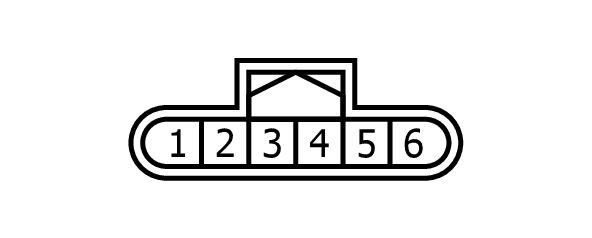

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
1	W	STEERING ANGLE SUB MOTOR RESOLVER SIGNAL (S2-S4)
2	R	STEERING ANGLE SUB MOTOR RESOLVER SIGNAL (S1-S3)
3	BR	STEERING ANGLE SUB MOTOR RESOLVER SIGNAL (R1-R2)
4	Y	STEERING ANGLE SUB MOTOR RESOLVER SIGNAL (S1-S3)
5	G	STEERING ANGLE SUB MOTOR RESOLVER SIGNAL (S2-S4)
6	L	STEERING ANGLE SUB MOTOR RESOLVER SIGNAL (R1-R2)
