Steering Angle Sensor Connector End View (M77)

Connector Types:  TH08FW-NH

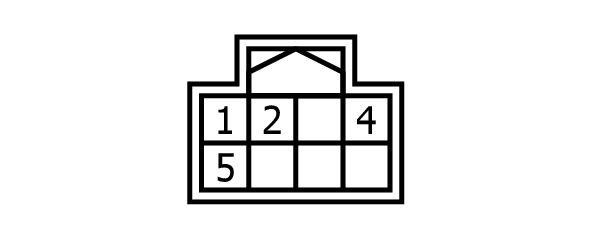

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

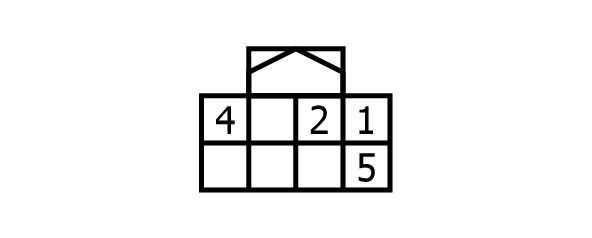

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
1	B	GROUND
2	R	CAN-L
4	G	IGN
5	L	CAN-H
