Remote Keyless Entry Receiver Connector End View (M113)

Connector Types:  AAC04FB

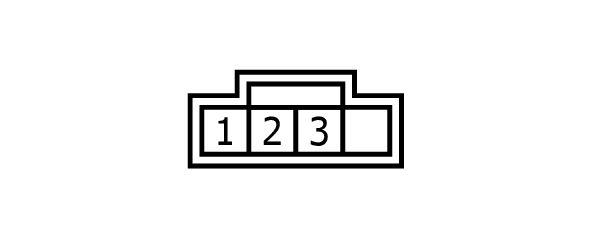

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

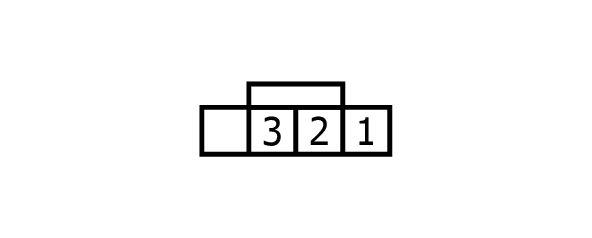

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
1	W	+ 12 V
2	L	SIGNAL
3	P	GND
