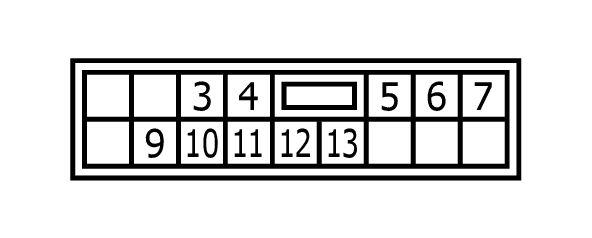

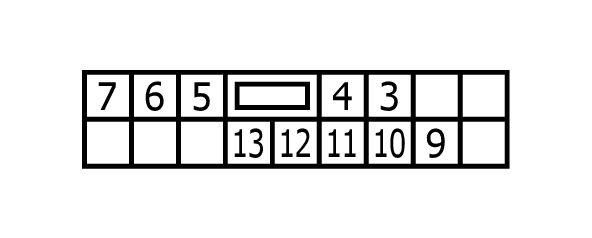

Power Window Main Switch Connector End View (D8)
Connector Types:
NS16FW-CS
Courtesy of NISSAN NORTH AMERICA
Courtesy of NISSAN NORTH AMERICA
| Terminal No. |
Color of Wire |
Signal Name (Specification) |
| 3 |
V |
ENCODER_+ |
| 4 |
Y |
+B |
| 5 |
G |
DN |
| 6 |
L |
UP |
| 7 |
B |
POWER WINDOW MAIN SWITCH GROUND |
| 9 |
BR |
IGN |
| 10 |
B |
ENCODER_GND |
| 11 |
GR |
ENCODER_SIG1 |
| 12 |
BR |
ENCODER_SIG2 |
| 13 |
SB |
POWER WINDOW SERIAL LINK |
