Optical Sensor Connector End View (M91)

Connector Types:  TK03FW

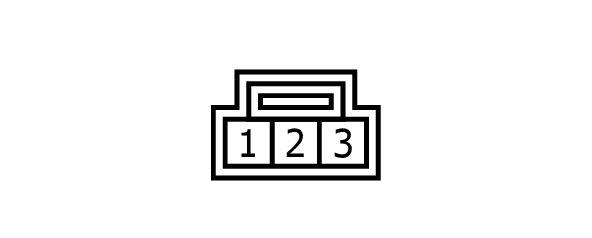

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

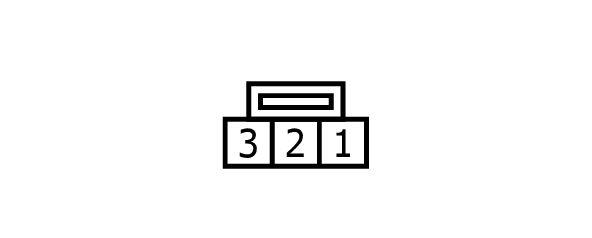

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
1	Y	SENSOR_POWER
2	BG	SENSOR_OUTPUT
3	P	SENSOR_GND
