Multi-Way Control Valve Connector End View (F117)

Connector Types:  E05FGY-RS

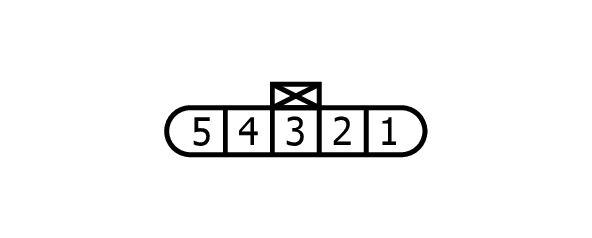

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

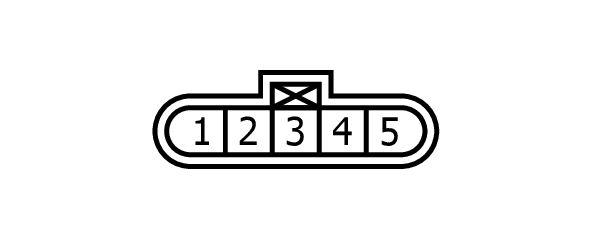

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
1	R	-
2	G	-
3	GR	-
4	LG	-
5	L	-
