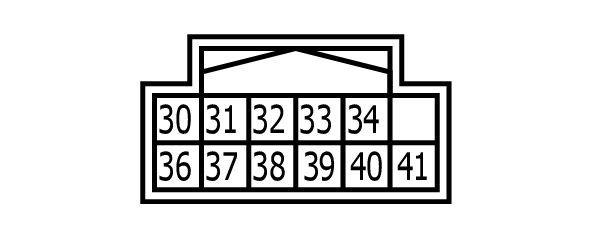

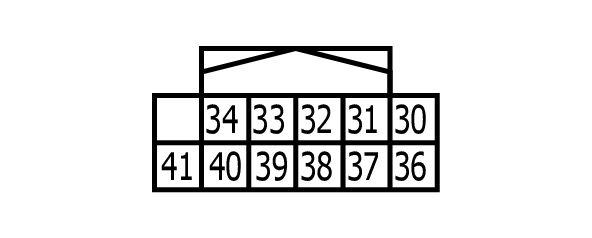

Integral Switch Connector End View (M3)
Connector Types: TH12FW-NH
| Terminal No. | Color of Wire | Signal Name (Specification) |
|---|---|---|
| 30 | BR | ILL |
| 31 | W | GND |
| 32 | R | ENCD-B SIGNAL |
| 33 | R | PUSH SWITCH A SIGNAL |
| 34 | W | PUSH SWITCH C SIGNAL |
| 36 | V | ILLUMINATION CONTROL SIGNAL |
| 37 | W | ENCD-A SIGNAL |
| 38 | G | SELECT SWITCH SIGNAL |
| 39 | B | PUSH SWITCH B SIGNAL |
| 40 | B | SHIELD |
| 41 | L | L/R_DETECTION SIGNAL |
