In-Vehicle Sensor Connector End View (M52)

Connector Types:  A02FW

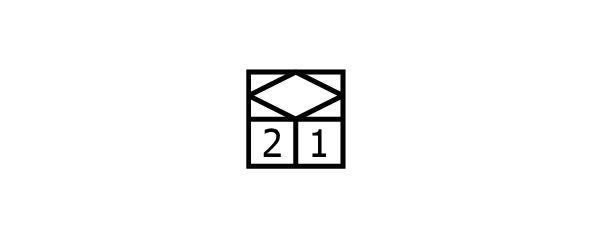

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

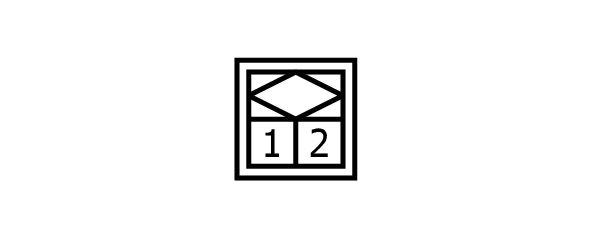

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
1	LG	IN-VEHICLE SENSOR SIGNAL
2	B	SENSOR GROUND
