IPDM E/R (Intelligent Power Distribution Module Engine Room) Connector End View (E124)

Connector Types:  TH12FW-NH

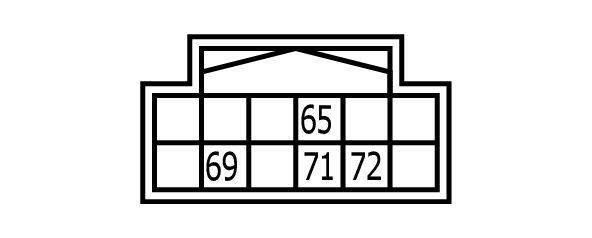

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

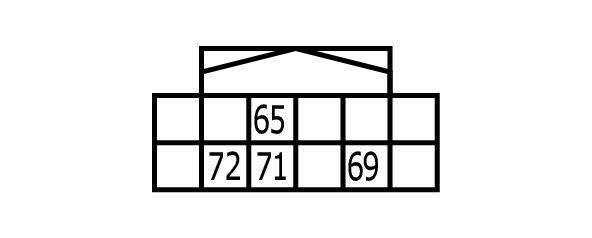

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
65	V	-
69	G	-
71	W	-
72	Y	-
