IPDM E/R (Intelligent Power Distribution Module Engine Room) Connector End View (E122)

Connector Types:  M01FB-LC

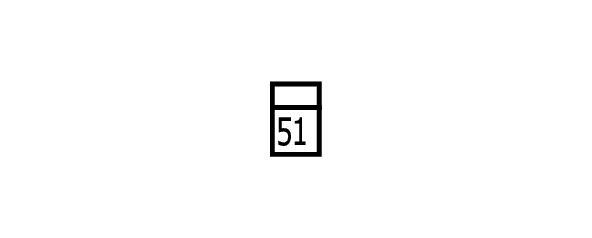

Fig 1: Terminal-side
GNSW3943Courtesy of NISSAN NORTH AMERICA

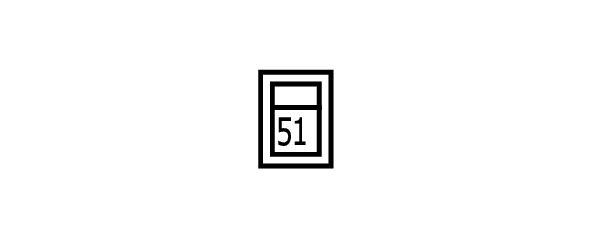

Fig 2: Harness-side
GNSW4701Courtesy of NISSAN NORTH AMERICA
Terminal No. Color of Wire Signal Name (Specification)
51 W -
