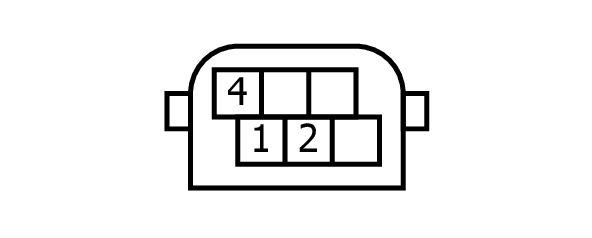

Height Sensor Connector End View (C4)
Connector Types:
AAZ06FB1
Courtesy of NISSAN NORTH AMERICA
Courtesy of NISSAN NORTH AMERICA
| Terminal No. |
Color of Wire |
Signal Name (Specification) |
| 1 |
BG |
HEIGHT SENSOR SIGNAL |
| 2 |
LG |
HEIGHT SENSOR POWER SUPPLY |
| 4 |
GR |
HEIGHT SENSOR GROUND |
