Fuel Level Sensor Unit (Sub) Connector End View (B161)

Connector Types:  HS05FW-1V

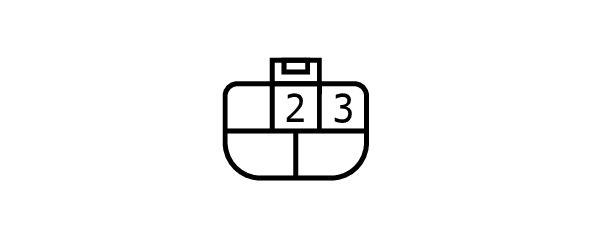

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

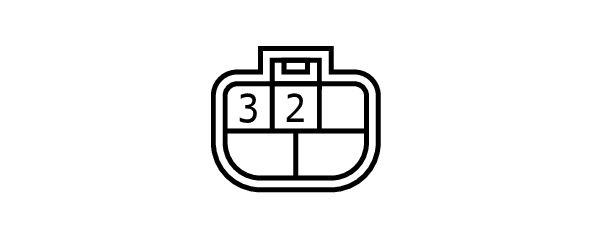

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
2	B	FUEL LEVEL SENSOR SIGNAL
3	W	-
