Driver Air Bag Module Connector End View (M320)

Connector Types:  ACA02FOR

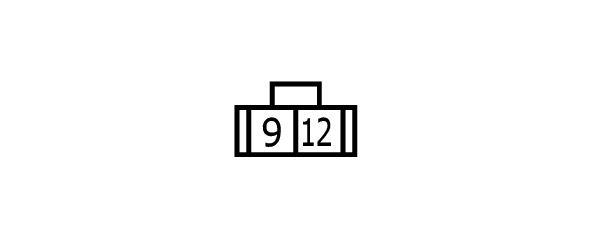

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

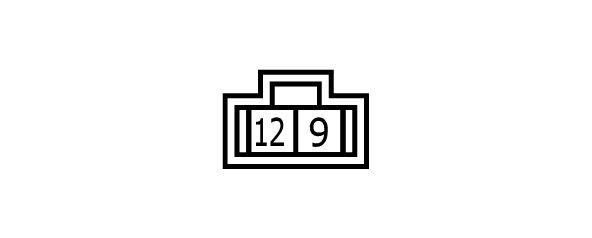

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
9	-	-
12	-	-
