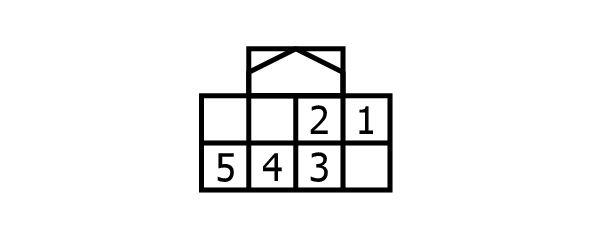

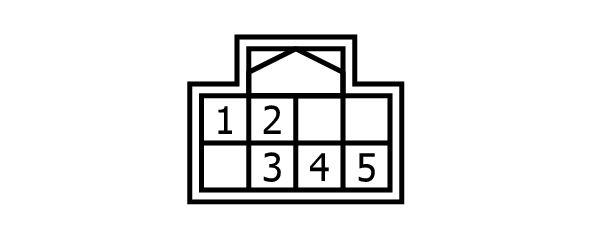

Drive Mode Select Switch Connector End View (M35)
Connector Types:
TH08FW-NH
Courtesy of NISSAN NORTH AMERICA
Courtesy of NISSAN NORTH AMERICA
| Terminal No. |
Color of Wire |
Signal Name (Specification) |
| 1 |
B |
DRIVE MODE SELECT SWITCH GROUND |
| 2 |
W/B |
- |
| 3 |
SB |
- |
| 4 |
R |
DRIVE MODE SELECT SWITCH POWER SUPPLY |
| 5 |
B |
- |
