Display Unit Connector End View (M424)

Connector Types:  HSD_2

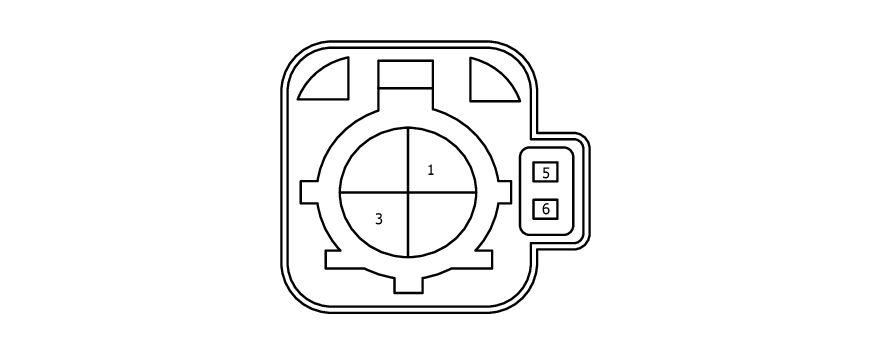

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

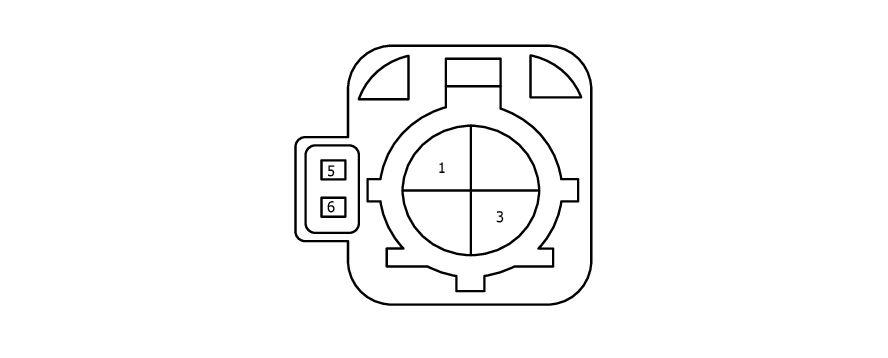

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
1	-	LVDS (-)
3	-	LVDS (+)
5	-	GROUND
6	-	12 V POWER SUPPLY
