Console Power Socket Connector End View (M69)

Connector Types:  CEA01FB-CHA2

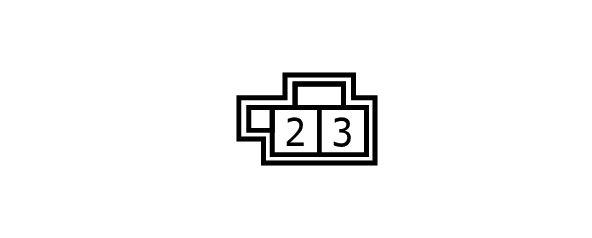

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

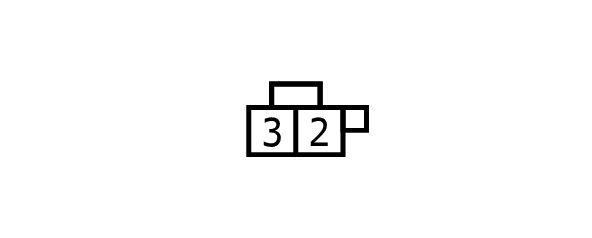

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
2	Y	-
3	B	-
