Battery Current Sensor Connector End View (E7)

Connector Types:  RH04FB

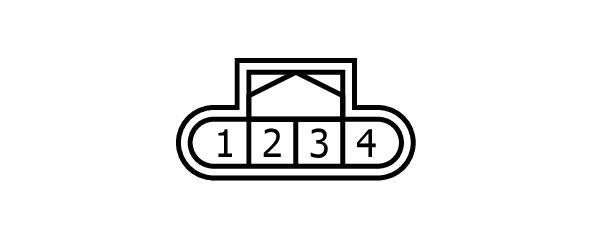

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

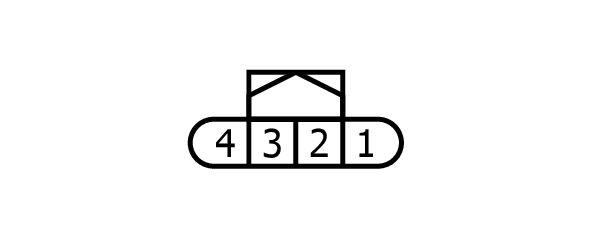

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
1	R	BATTERY CURRENT SENSOR
2	B	SENSOR GROUND
3	BG	BATTERY TEMPERATURE SENSOR
4	LG	SENSOR POWER SUPPLY
