Av Control Unit Connector End View (M425)
Connector Types:

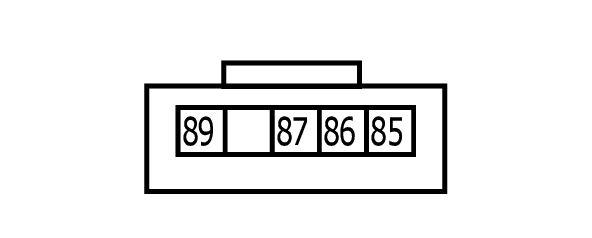

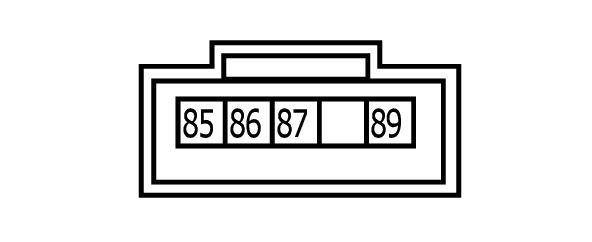

USCAR30-MC-F
Courtesy of NISSAN NORTH AMERICA
Courtesy of NISSAN NORTH AMERICA
| Terminal No. |
Color of Wire |
Signal Name (Specification) |
| 85 |
R |
USB V BUS SIGNAL |
| 86 |
W |
USB D- SIGNAL |
| 87 |
G |
USB D+ SIGNAL |
| 89 |
B |
USB GROUND |
