Av Control Unit Connector End View (M423)

Connector Types:  HSD_2

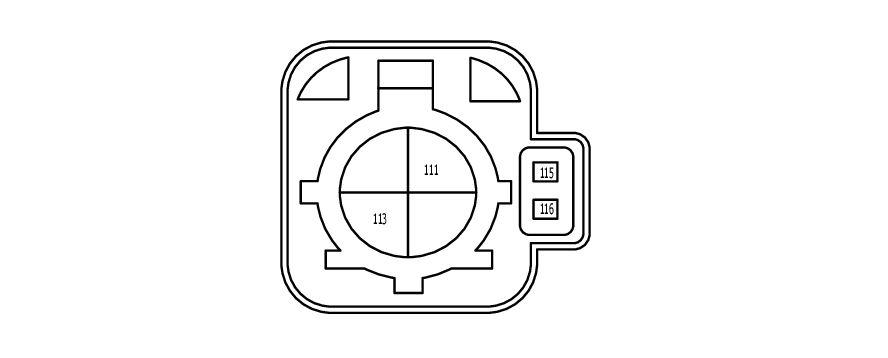

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

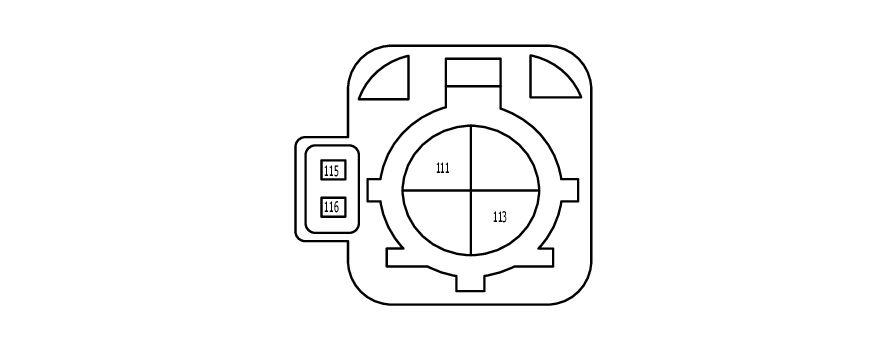

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
111	-	LVDS (-)
113	-	LVDS (+)
115	-	GROUND
116	-	12 V POWER SUPPLY
