Av Control Unit Connector End View (M422)

Connector Types:  FAKRA

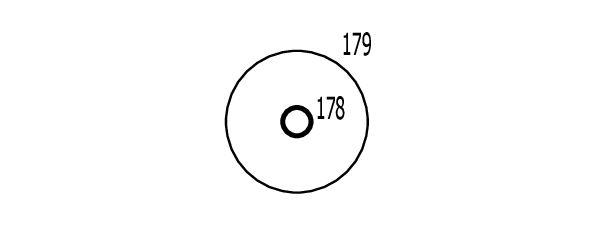

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

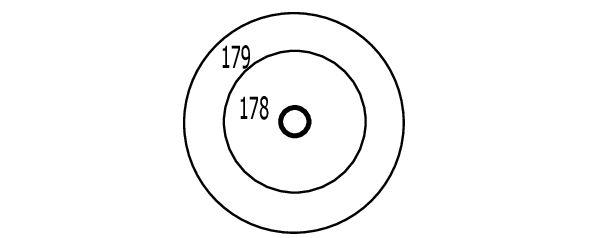

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
178	-	GPS ANTENNA SIGNAL
179	-	SHIELD
