Av Control Unit Connector End View (M420)

Connector Types:  HSD

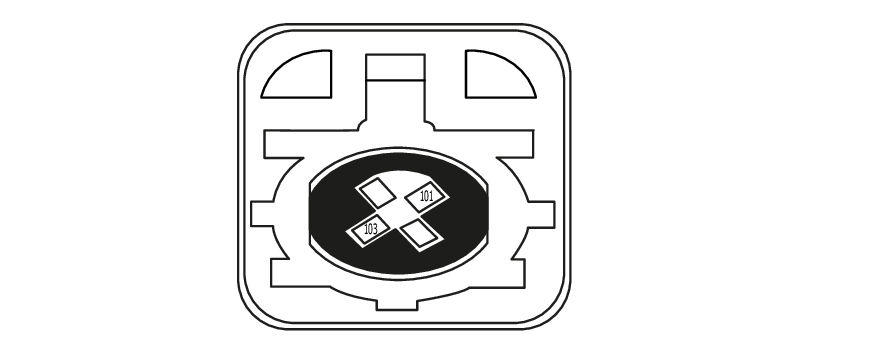

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

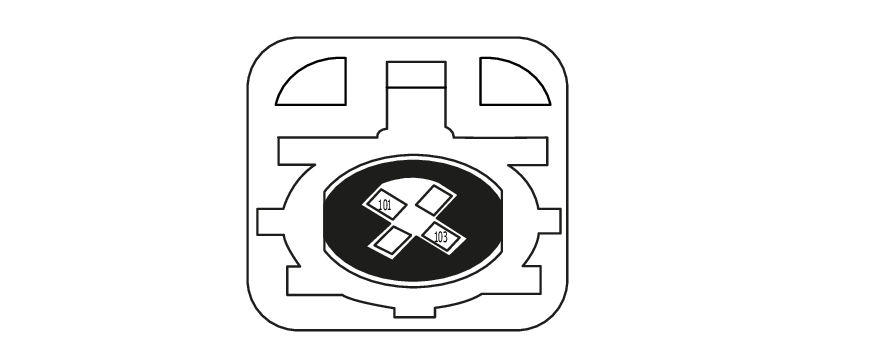

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
101	-	LVDS (-)
103	-	LVDS (+)
