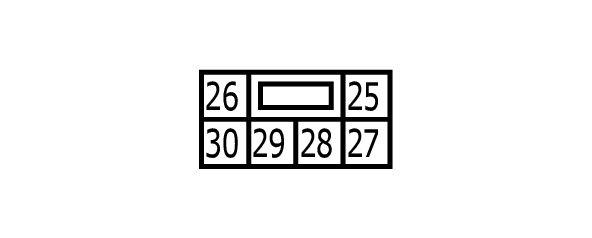

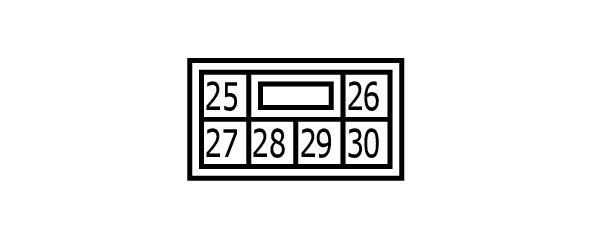

Automatic Drive Positioner Control Unit Connector End View (M44)
Connector Types:
NS06FW-CS
Courtesy of NISSAN NORTH AMERICA
Courtesy of NISSAN NORTH AMERICA
| Terminal No. |
Color of Wire |
Signal Name (Specification) |
| 25 |
SB |
BATTERY POWER SUPPLY |
| 26 |
G |
TELESCOPIC MTR BACKWARD OUTPUT |
| 27 |
W |
TILT SEN & TELESCOPIC SEN POWER SUPPLY |
| 28 |
BR |
TILT MTR DOWN OUTPUT |
| 29 |
L |
TILT MTR UP OUTPUT & TELESCOPIC MTR FORWARD OUTPUT |
| 30 |
B |
GROUND |
