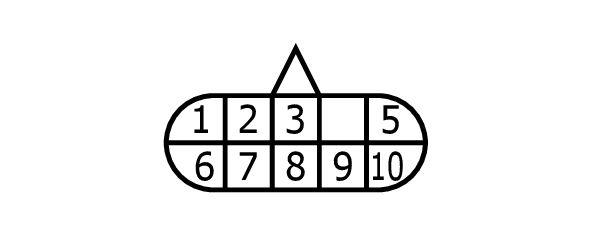

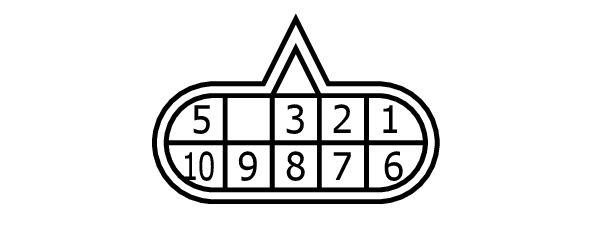

A/T Assembly Connector End View (F2)
Connector Types:
RK10FG-DGY
Courtesy of NISSAN NORTH AMERICA
Courtesy of NISSAN NORTH AMERICA
| Terminal No. |
Color of Wire |
Signal Name (Specification) |
| 1 |
L |
IGNITION POWER SUPPLY |
| 2 |
P |
BATTERY POWER SUPPLY (MEMORY BACK-UP) |
| 3 |
L |
CAN-H |
| 5 |
BR |
GROUND |
| 6 |
GR |
IGNITION POWER SUPPLY |
| 7 |
BG |
BACK-UP LAMP RELAY |
| 8 |
P |
CAN-L |
| 9 |
V |
STARTER RELAY |
| 10 |
B |
GROUND |
