How To Use This Article: Components
- THE LARGE ILLUSTRATIONS
are exploded views (see the following) and contain tightening torques, lubrication points
and other information necessary to perform repairs.
The illustrations should be used in reference to service matters only.

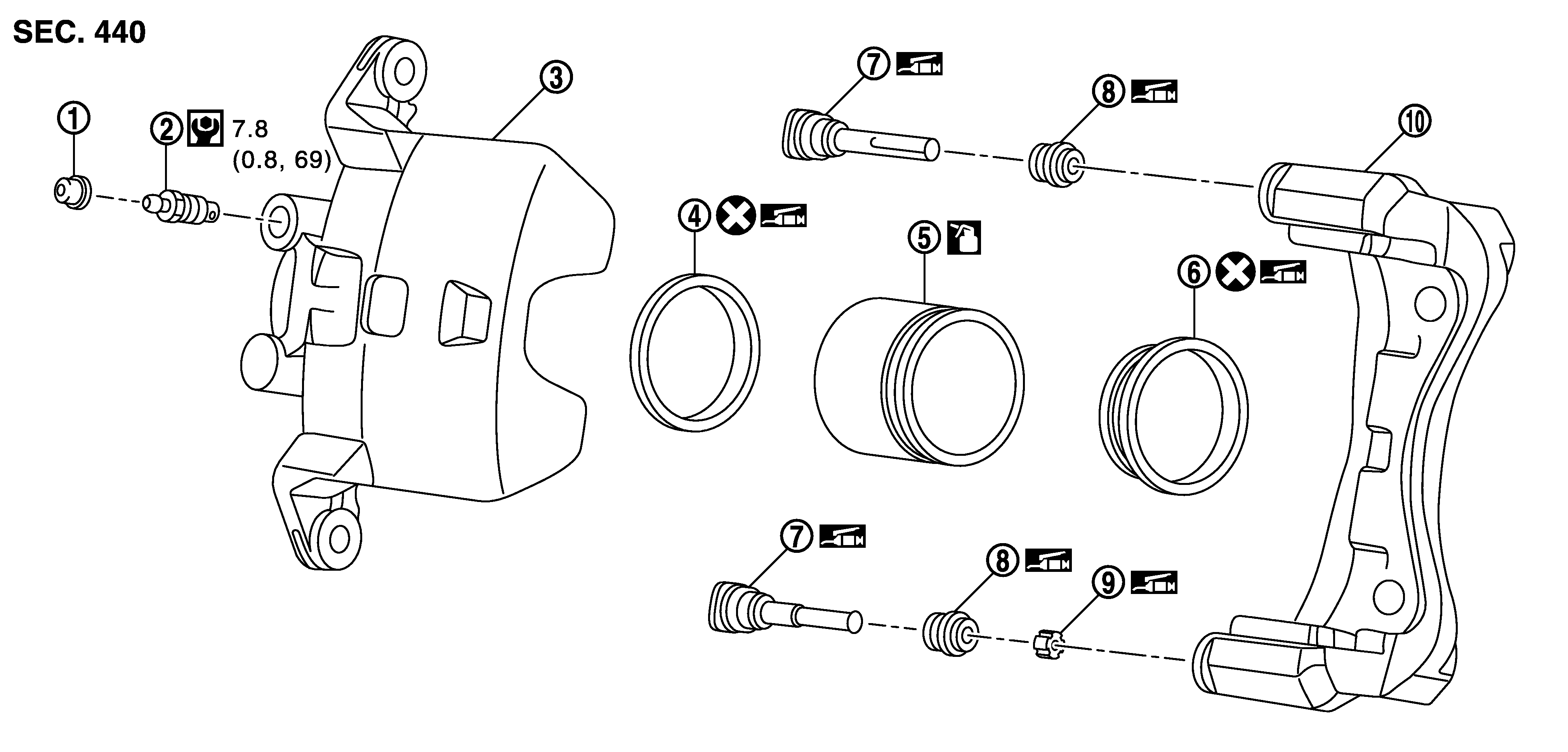

Components shown in an illustration may be identified by a circled number. When this style of illustration is used, the text description of the components will follow the illustration.
|
1. |
Cap |
2. |
Bleeder valve |
3. |
Cylinder body |
|
4. |
Piston seal |
5. |
Piston |
6. |
Piston boot |
|
7. |
Sliding pin |
8. |
Sliding pin boot |
9. |
Bushing |
|
10. |
Torque member |
||||
|
|
: Apply rubber grease. |
||||
|
|
: Apply brake fluid. |
||||
|
|
: N.m (kg-m, in-lb) |
||||
|
|
: Always replace after every disassembly |
||||

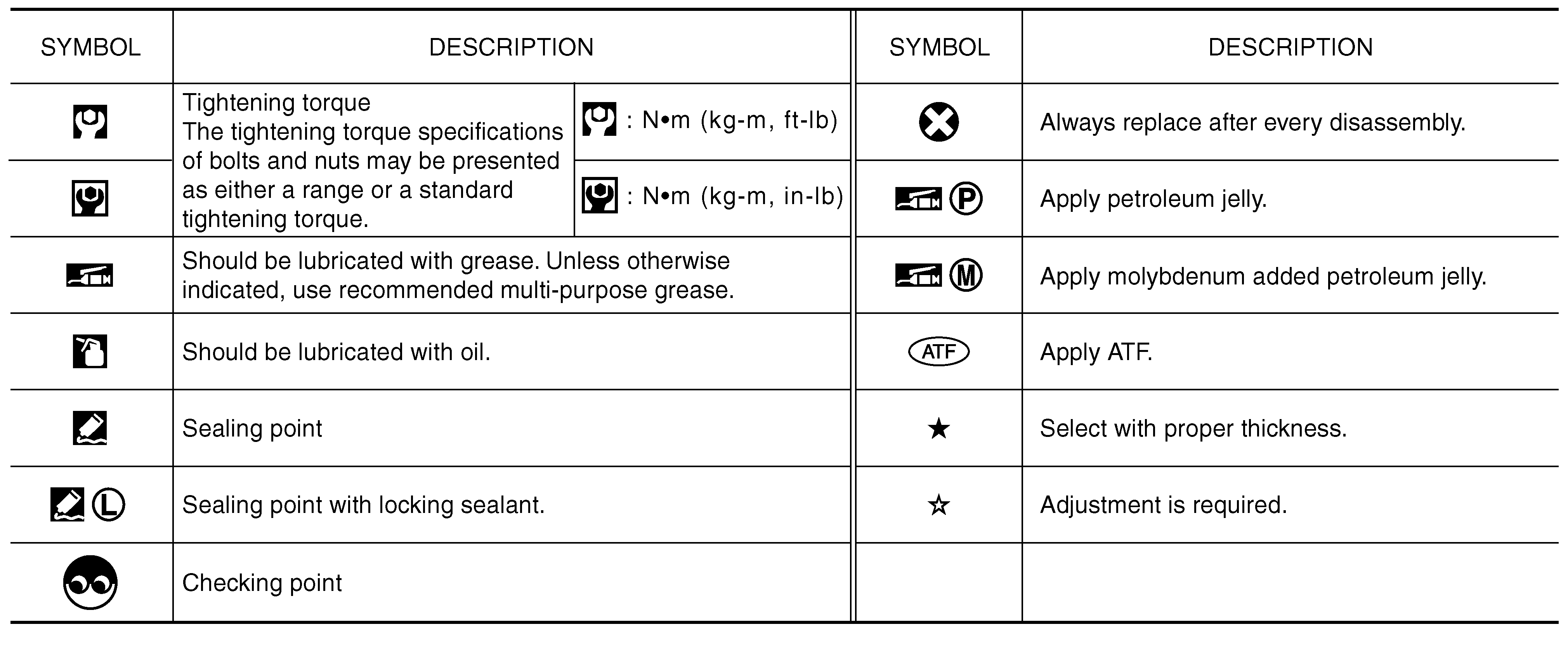

Symbols
