Direct Clutch: Disassembly: Assembly

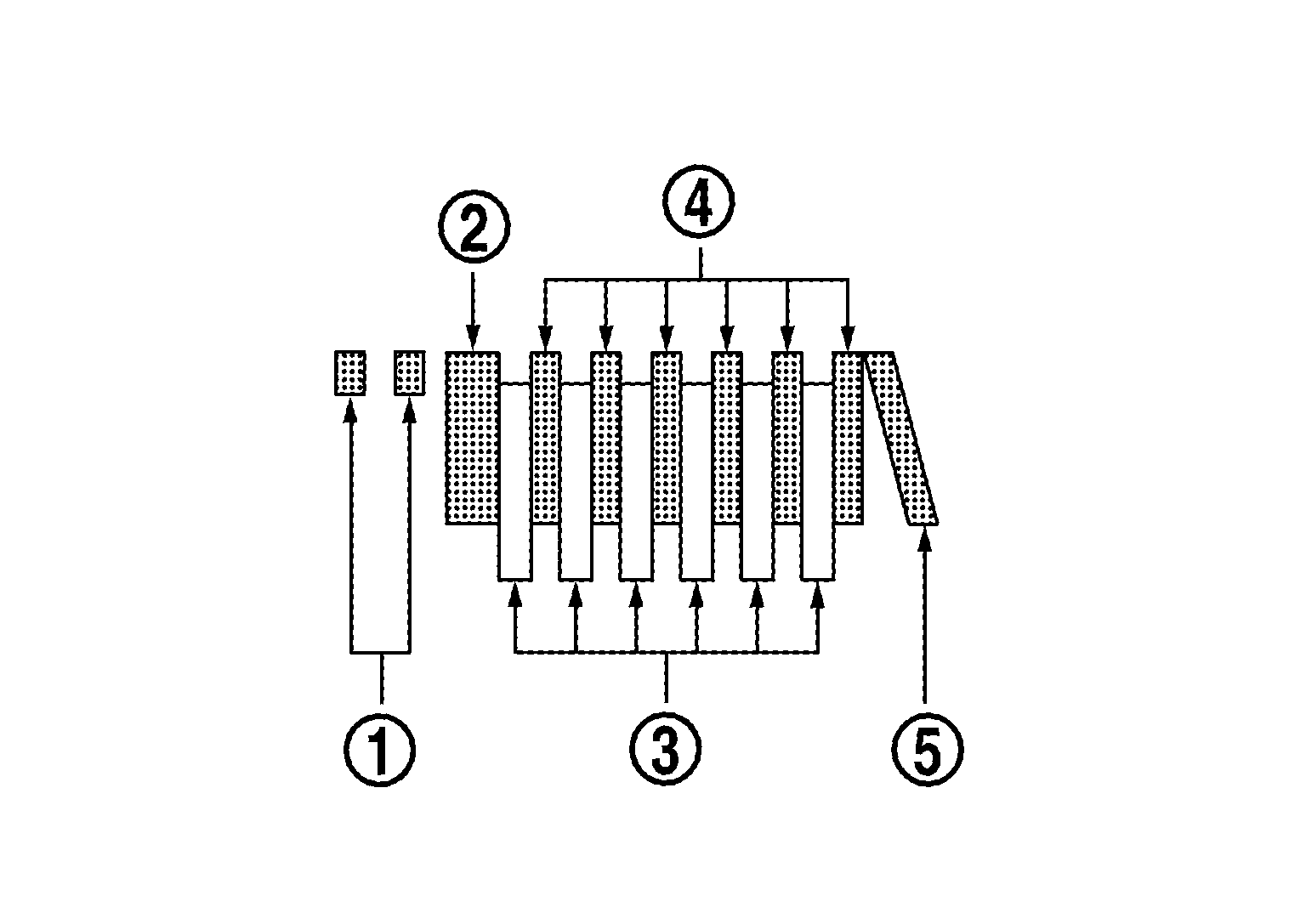

  1. Install direct clutch component part (drive plates, driven plates, retaining plate, and dish plate) to direct clutch drum.
    G04075909Courtesy of NISSAN NORTH AMERICA, INC.

    1

    : Snap ring

    2

    : Retaining plate

    3

    : Drive plate (six pieces)

    4

    : Driven plate (six pieces)

    5

    : Dish plate
    CAUTION: Check the order of plates.
  2. Install snap rings to direct clutch drum using a flat-bladed screwdriver.
    G04075903Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:
    • Be careful not to scratch direct clutch drum and direct clutch retaining plate.
    • Be careful not to damage snap ring.
