Exploded View

WARNING: This page is about a different car, the 2019 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

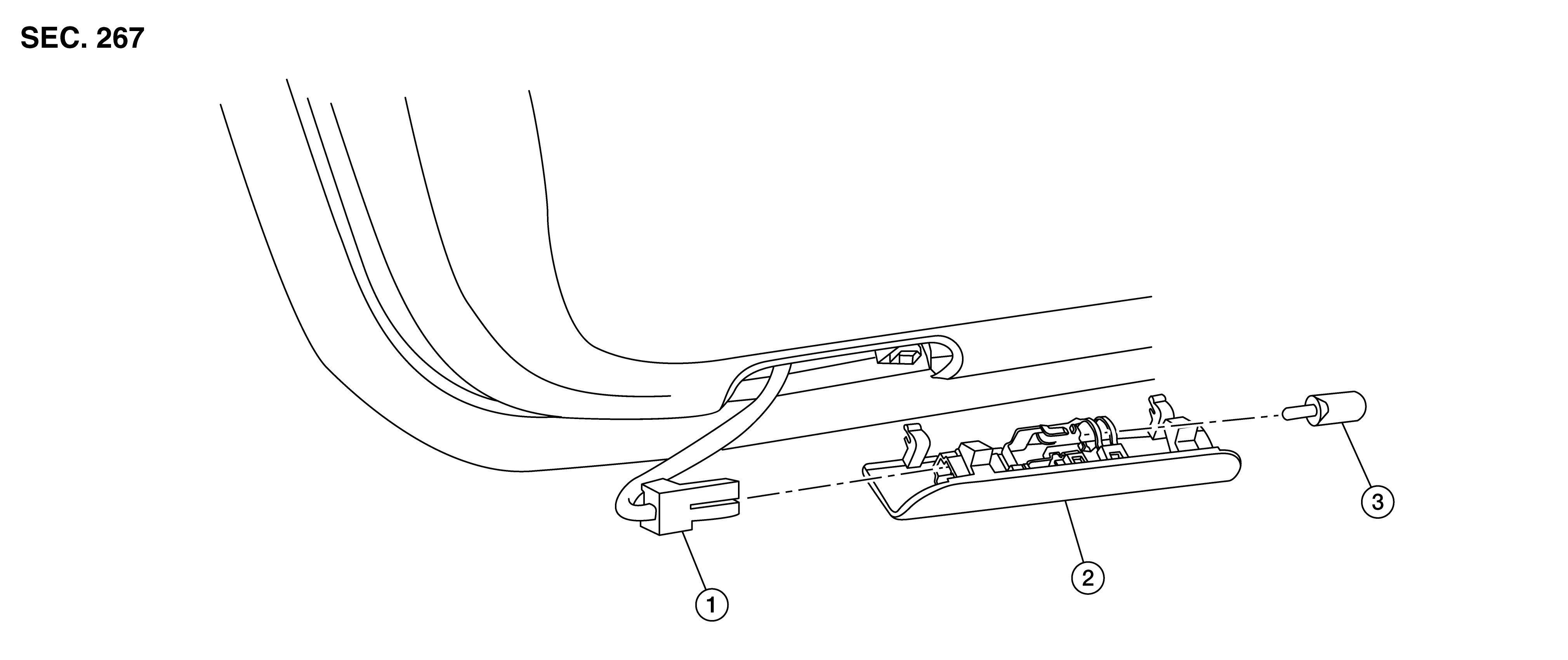

GNSALLIA1087Z-087Courtesy of NISSAN NORTH AMERICA, INC.

1.

Step lamp harness connector

2.

Step lamp

3.

Bulb
