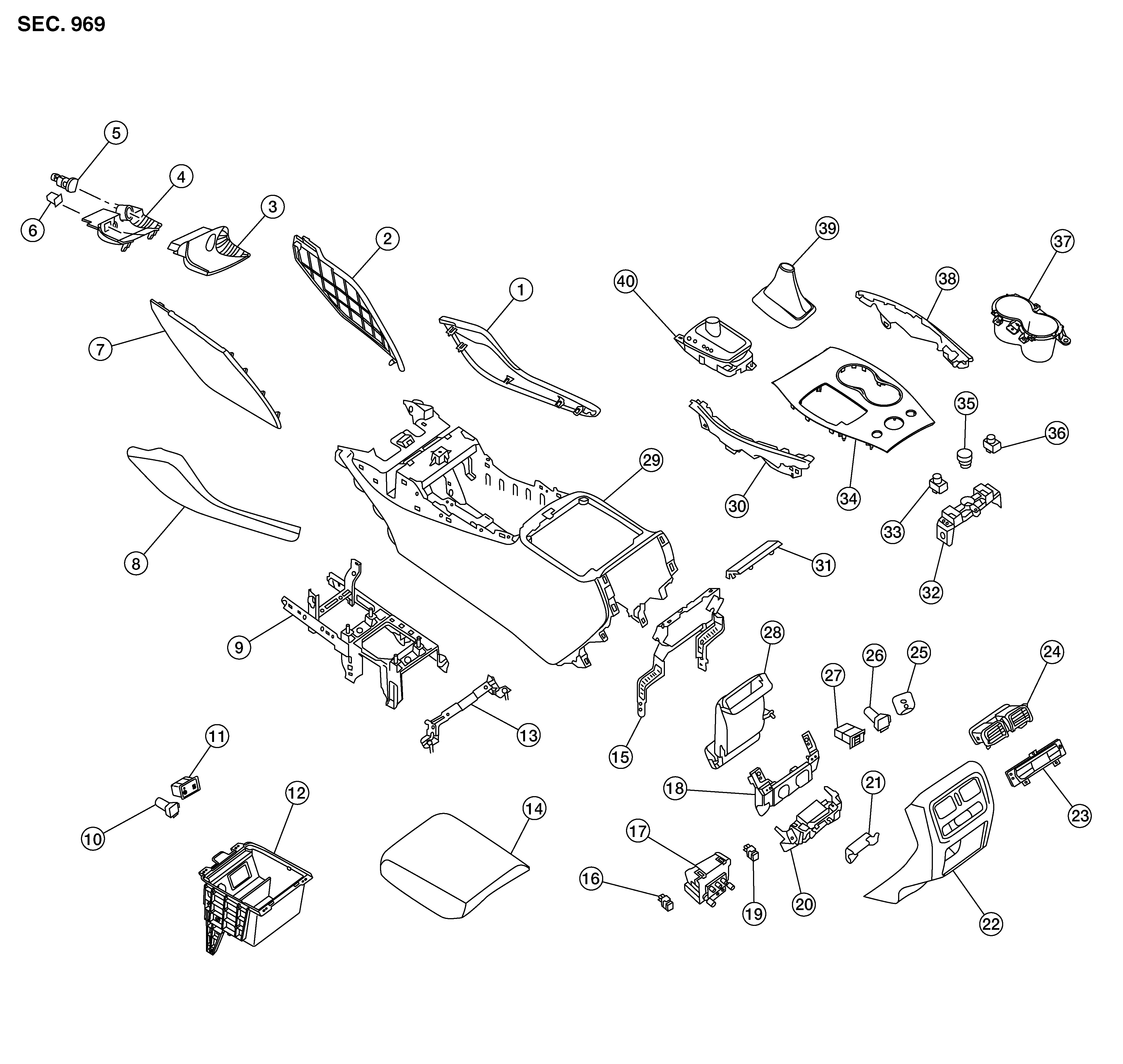

Exploded View
|
1. |
Center console upper side finisher (RH) |
2. |
Center console side finisher (RH) |
3. |
Front console mat |
|
4. |
Front console tray |
5. |
Power socket |
6. |
Front USB charge port |
|
7. |
Center console side finisher (LH) |
8. |
Center console upper side finisher (LH) |
9. |
Center console brace |
|
10. |
Power socket |
11. |
Front auxiliary input jacks |
12. |
Center console bin |
|
13. |
Center console upper brace |
14. |
Center console lid |
15. |
Center console rear brace |
|
16. |
2nd row heated seat switch LH (if equipped) |
17. |
Rear auxiliary input jacks (if equipped) |
18. |
Center console rear finisher upper bracket |
|
19. |
2nd row heated seat switch RH (if equipped) |
20. |
Center console rear finisher lower bracket |
21. |
Intelligent Key antenna |
|
22. |
Center console rear finisher |
23. |
Rear blower control |
24. |
Rear center ventilator grille assembly |
|
25. |
AC 120 V outlet (if equipped) |
26. |
Power socket (if equipped) |
27. |
Rear USB charge port (if equipped) |
|
28. |
Rear center ventilator duct |
29. |
Center console |
30. |
Shift selector finisher (LH) |
|
31. |
Center console rear brace finisher |
32. |
Center console switch bracket |
33. |
Front seat climate control switch (LH) |
|
34. |
Shift selector finisher |
35. |
Drive mode selector switch |
36. |
Front seat climate control switch (RH) |
|
37. |
Center console cup holder |
38. |
Shift selector finisher (RH) |
39. |
Shift selector boot |
|
40 |
Shift selector |
