Exploded View

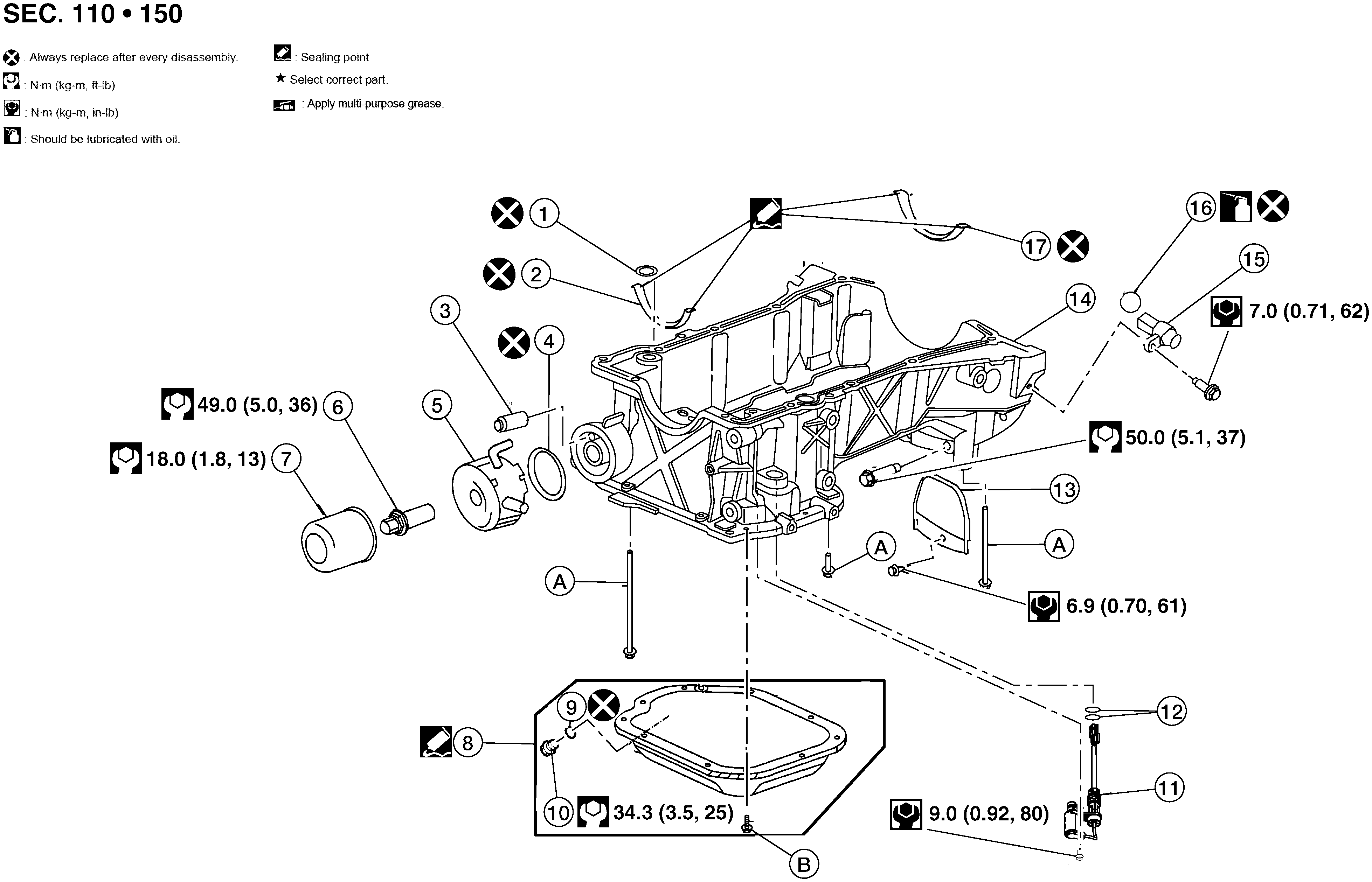

Fig 1: Oil Pan Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	O-ring	2.	Front cover gasket	3.	Oil pressure regulator valve
4.	Oil cooler gasket	5.	Oil cooler	6.	Oil cooler connection
7.	Oil filter	8.	Oil pan (lower)	9.	Washer
10.	Drain plug	11.	Engine oil pressure control solenoid valve	12.	O-ring
13.	Rear plate cover	14.	Oil pan (upper)	15.	Crankshaft position sensor (POS)
16.	O-ring	17.	Rear oil seal retainer gasket	A.	Refer to Removal and Installation (Upper Oil Pan) .
B.	Refer to INSTALLATION
