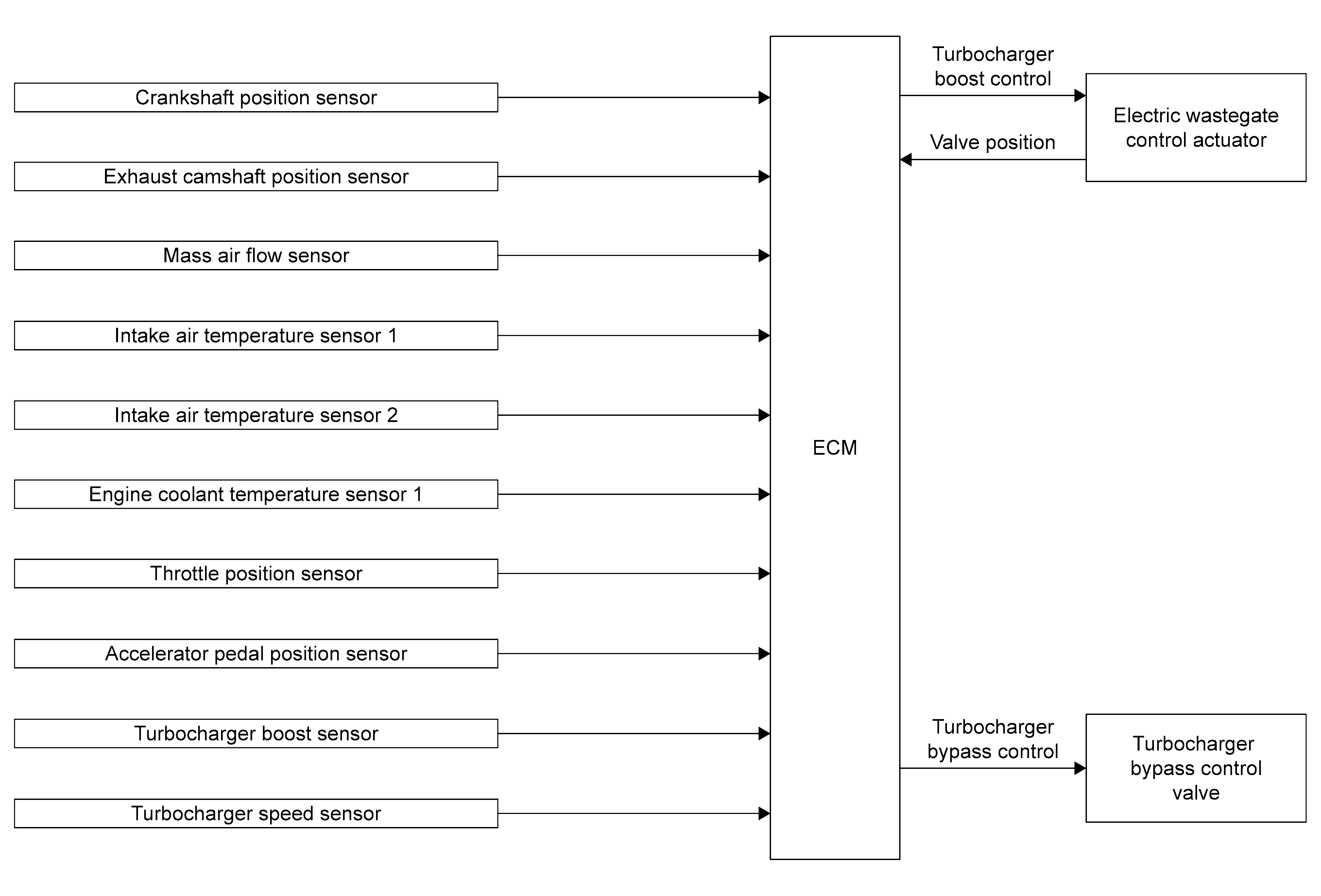

System Diagram
|
Component parts |
Function |
|
Crankshaft position sensor |
|
|
Exhaust camshaft position sensor |
|
|
Mass air flow sensor (With intake air temperature sensor) |
|
|
Intake air temperature sensor 1 |
|
|
Intake air temperature sensor 2 |
Turbocharger Boost Sensor (With Intake Air Temperature Sensor 2) |
|
Engine coolant temperature sensor 1 |
|
|
Electric throttle control actuator |
|
|
Accelerator pedal position sensor |
|
|
Turbocharger Boost Sensor (With Intake Air Temperature Sensor 2) |
Turbocharger Boost Sensor (With Intake Air Temperature Sensor 2) |
|
Turbocharger speed sensor |
|
|
ECM |
|
|
Electric wastegate control actuator |
|
|
Turbocharger bypass control valve |
