Removal and Installation: Notes

CAUTION: Perform the following items when replacing the control valve.

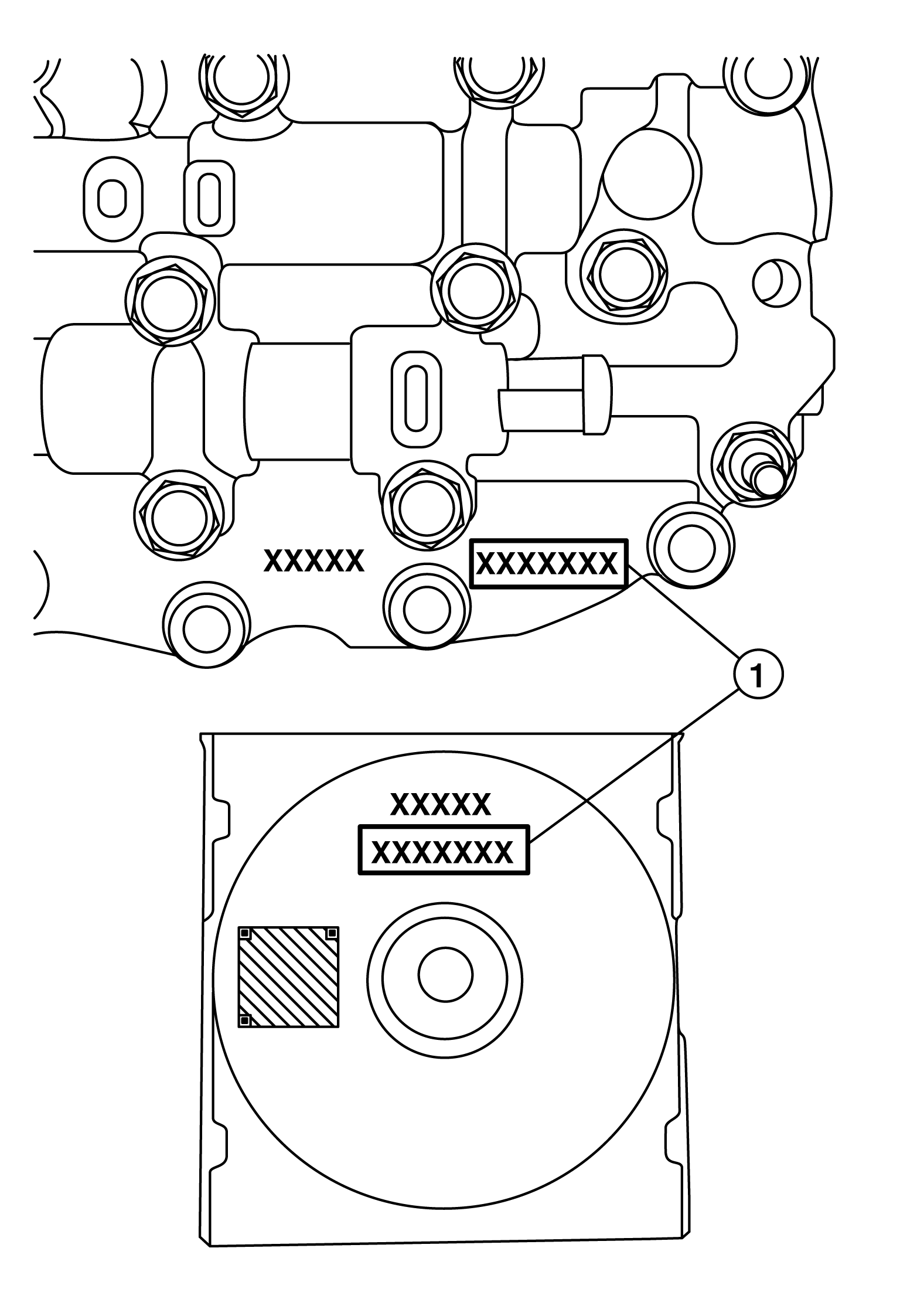

Check that the part number and serial number of the new control valve (1) are identical to those of the attached CD (1).

Courtesy of NISSAN NORTH AMERICA, INC.

If old QR code sticker is affixed to shift actuator, remove the QR code sticker and affix new QR code sticker included with new control valve.

NOTE: The CD provided with the new control valve contains important calibration data that must be installed with CONSULT after installation of the new control valve. Do not discard the CD.
