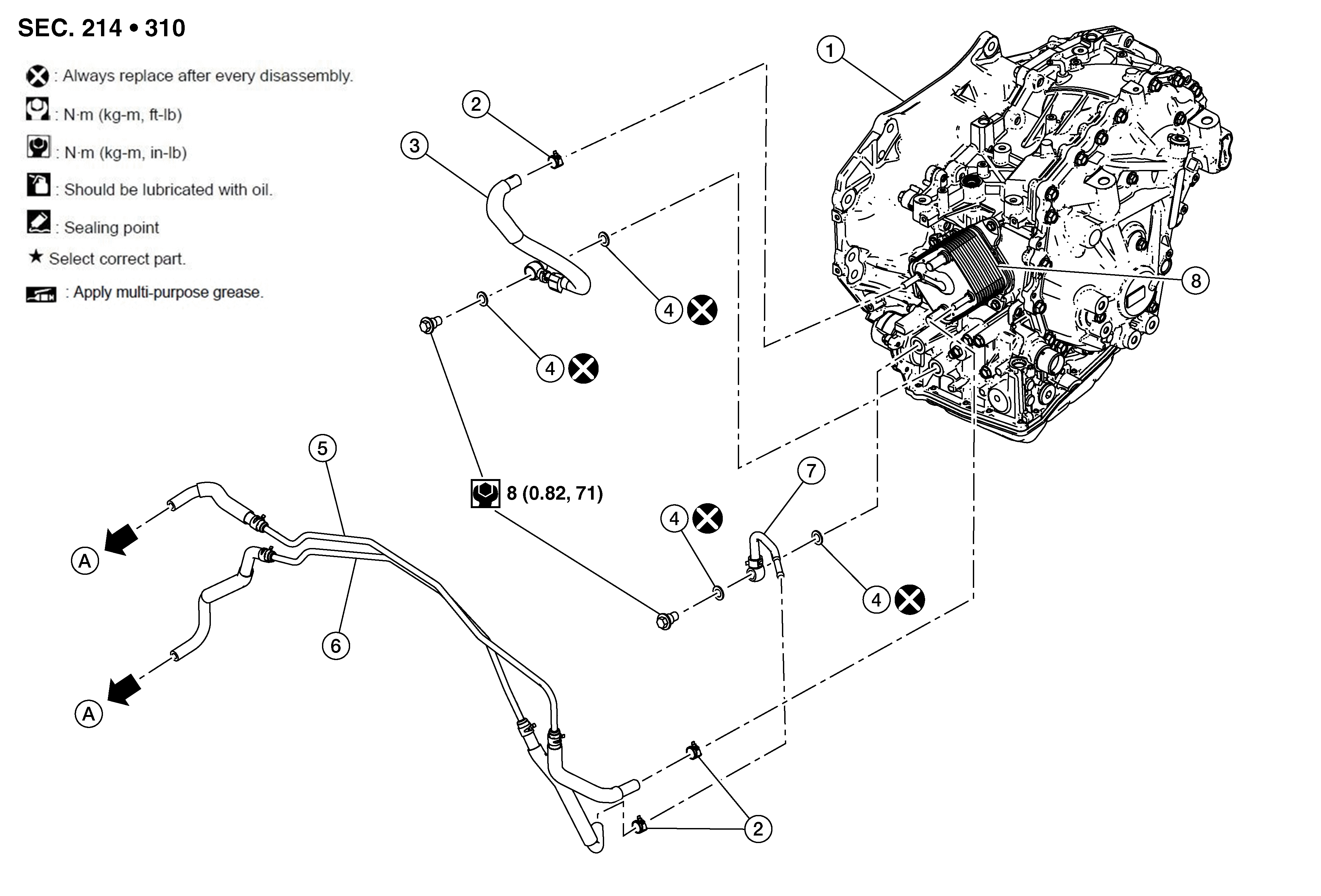

1.
Transaxle assembly
2.
Hose clamp
3.
CVT fluid cooler hose A
4.
Copper sealing washer
5.
CVT fluid cooler hose C
6.
CVT fluid cooler hose D
7.
CVT fluid cooler hose B
8.
CVT fluid warmer
A.
To radiator
Courtesy of NISSAN NORTH AMERICA, INC.
