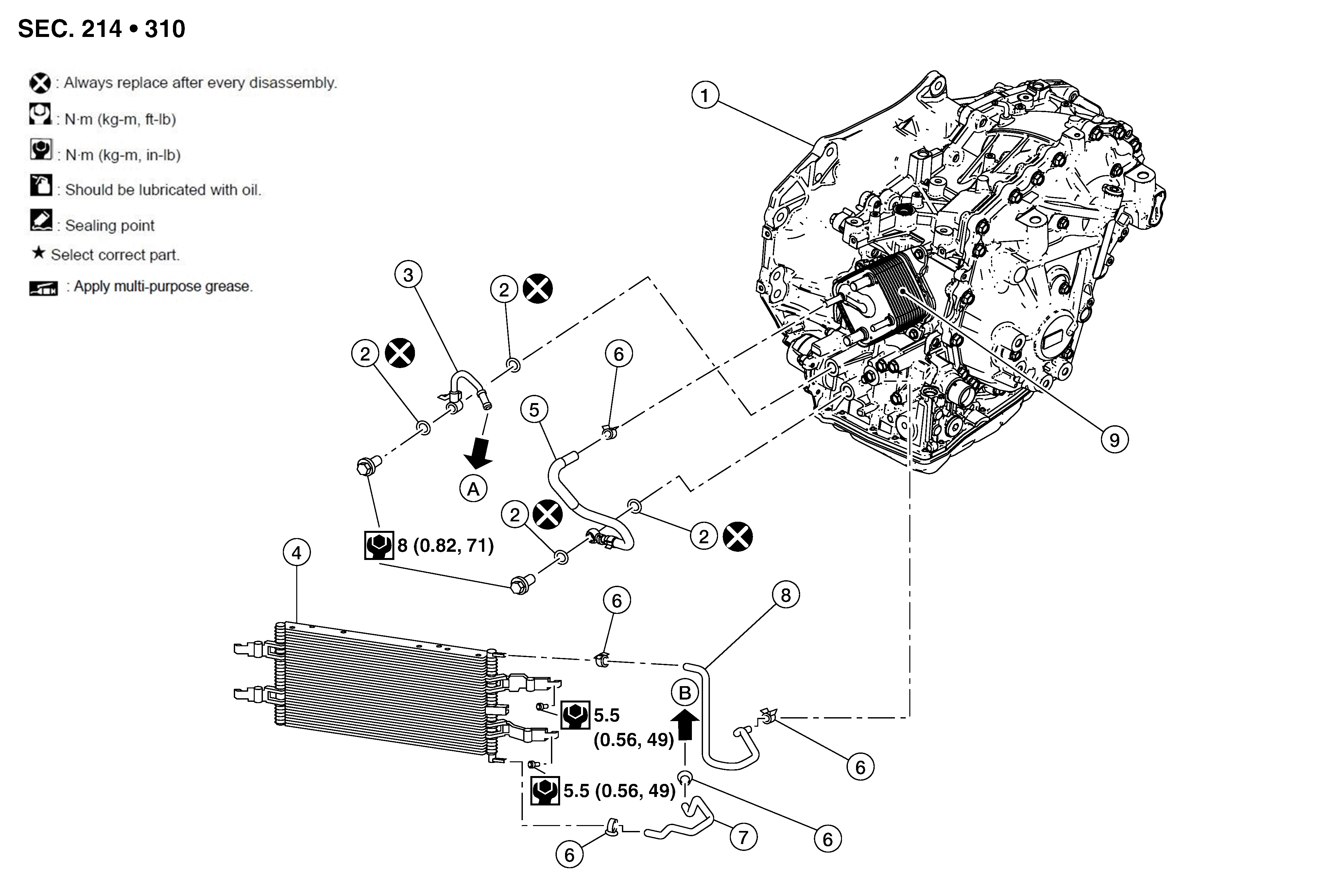

1.
Transaxle assembly
2.
Copper sealing washer
3.
CVT fluid cooler hose A
4.
CVT fluid cooler
5.
CVT fluid cooler hose B
6.
Clamp
7.
CVT fluid cooler hose D
8.
CVT fluid cooler hose C
9.
CVT fluid warmer
A.
To CVT fluid cooler hose D
B.
To CVT fluid cooler hose A
