Exploded View

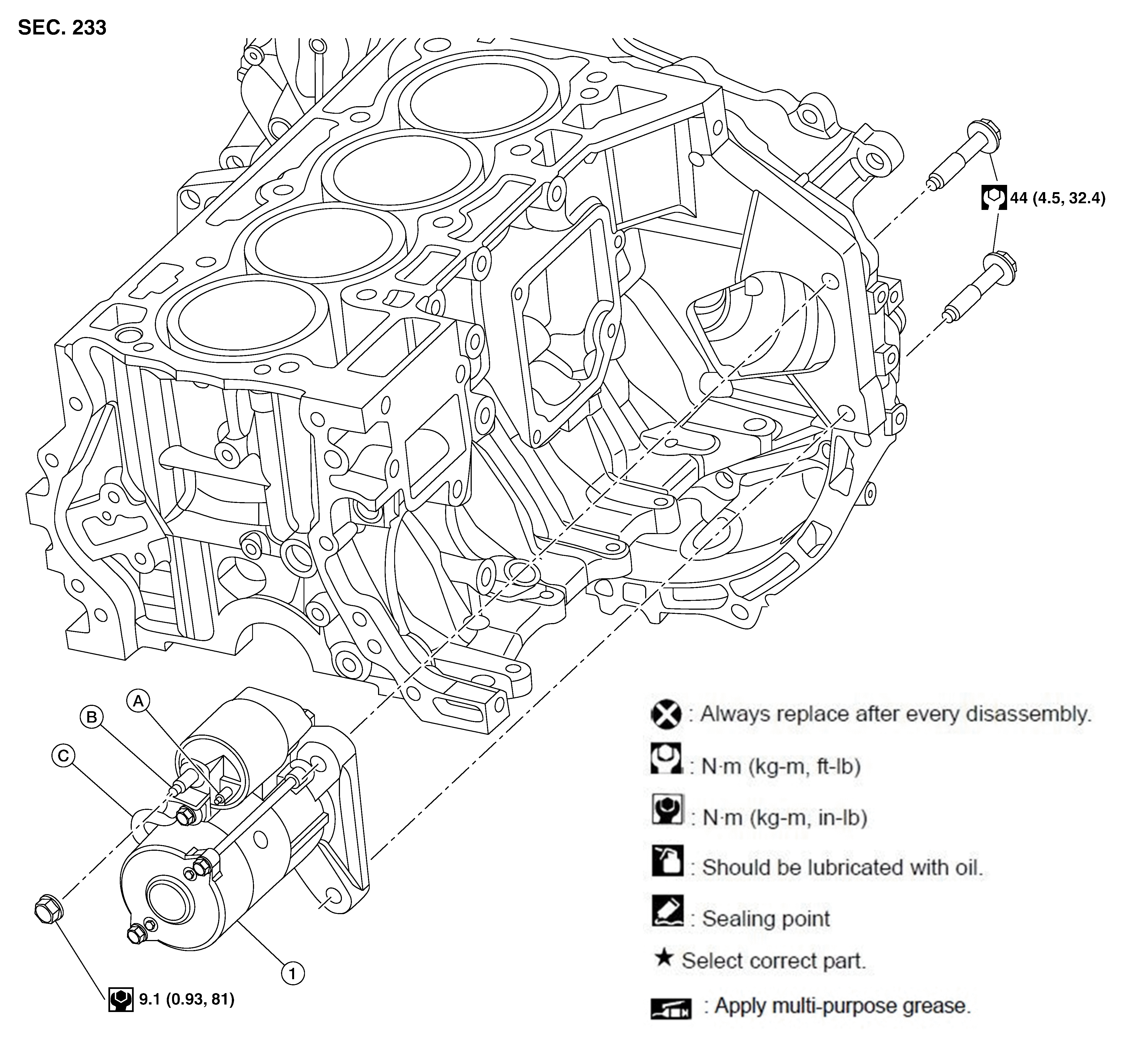

Fig 1: Starter Motor With Torque Specifications
GNSAWBIA0159Z-159Courtesy of NISSAN NORTH AMERICA, INC.

1.

Starter Assembly

A.

"S" Connector

B.

"B" Terminal

C.

Ground Harness
