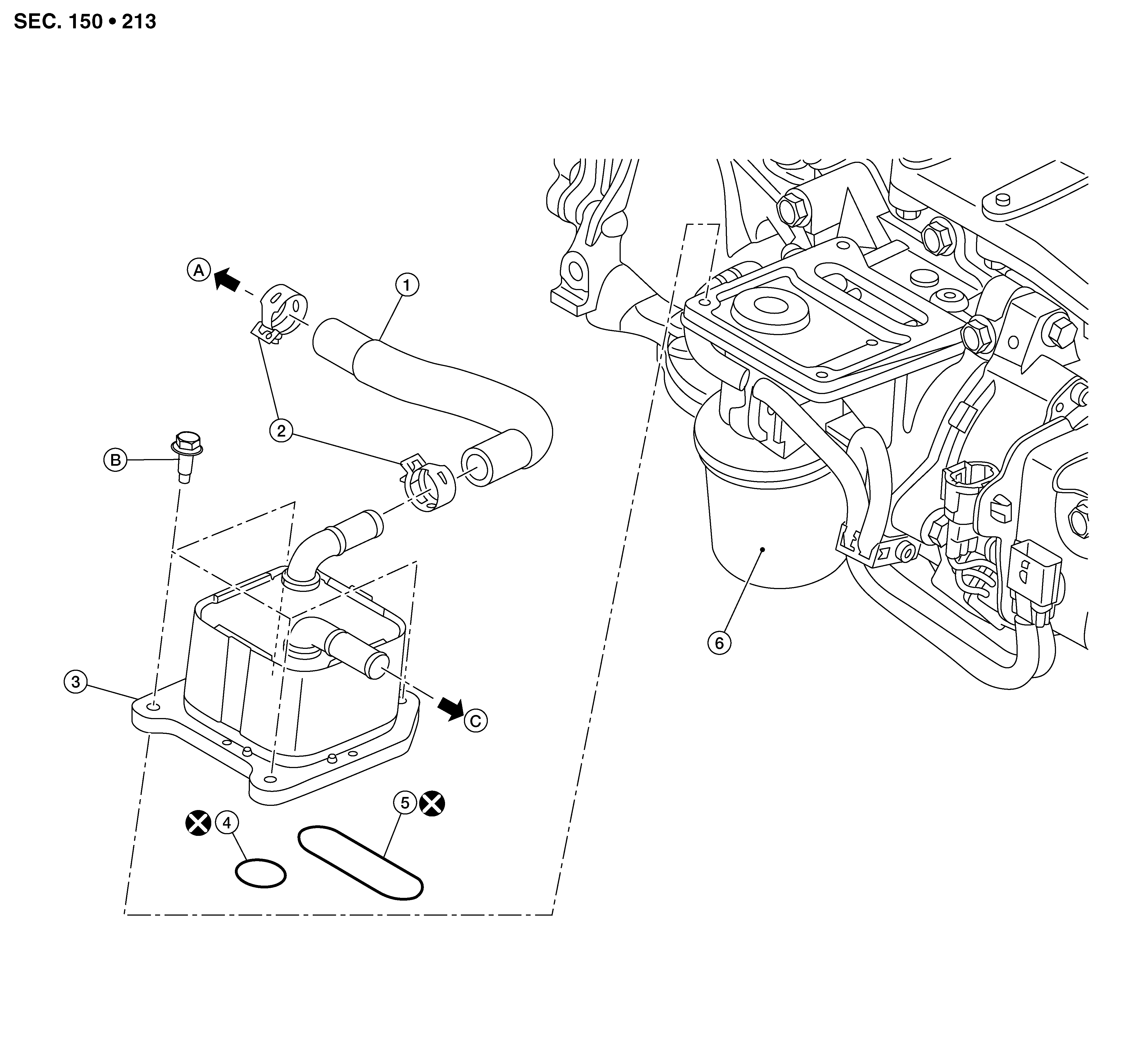

Exploded View

1.

Water hose

2.

Clamp

3.

Oil cooler

4.

O-ring

5.

O-ring

6.

Oil filter

A.

To water pump housing. Refer to Exploded View .

B.

Refer to Removal and Installation .

C.

To CVT water hose A. Refer to Exploded View .
