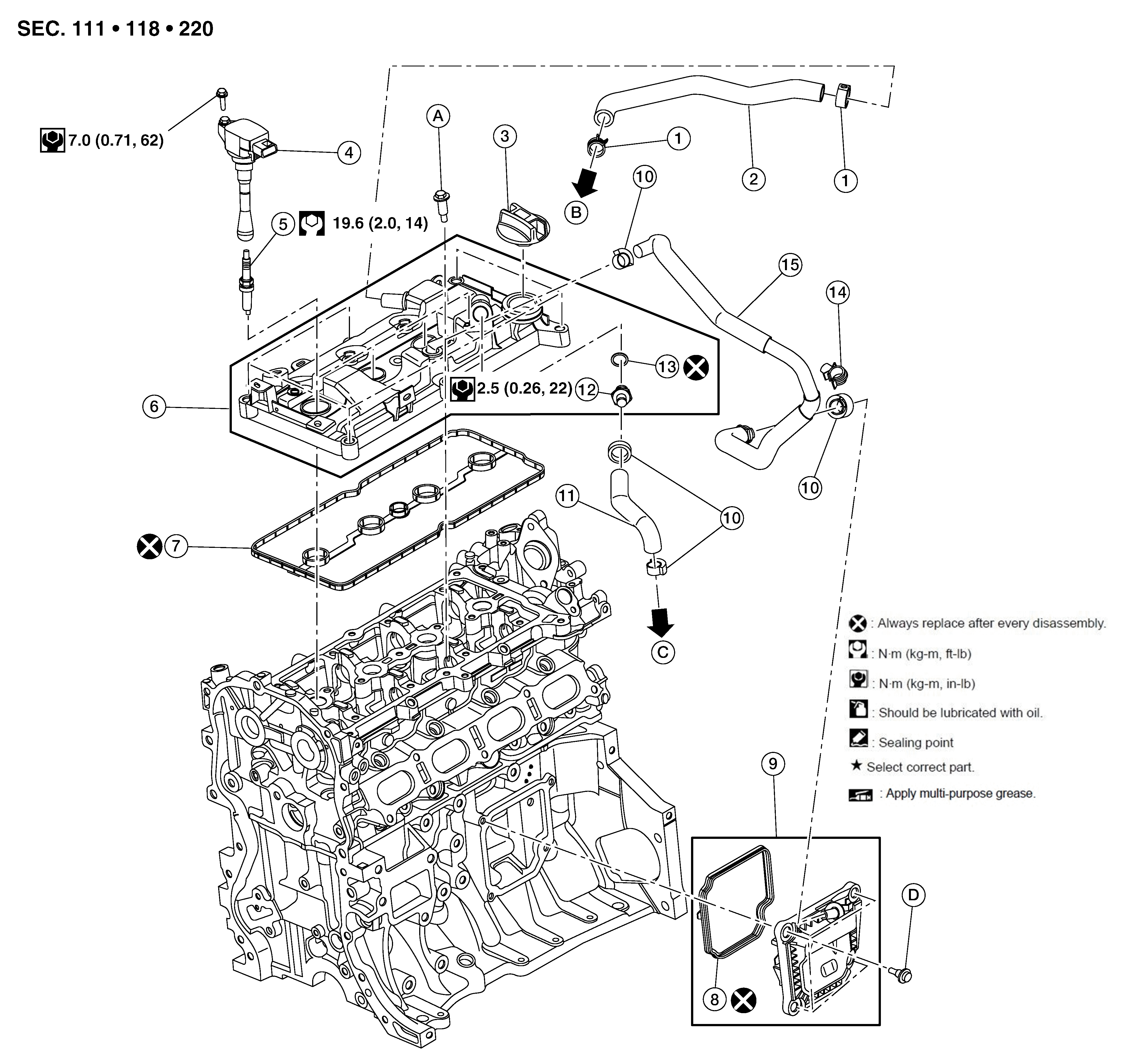

Exploded View
|
1. |
Hose clamp |
2. |
Air breather hose |
3. |
Oil filler cap |
|
4. |
Ignition coil |
5. |
Spark plug |
6. |
Rocker cover assembly |
|
7. |
Rocker cover gasket |
8. |
PCV separator gasket |
9. |
PCV separator |
|
10. |
Clamp |
11. |
PCV hose 1 |
12. |
PCV valve |
|
13. |
O-ring |
14. |
Clip |
15. |
PCV hose 2 |
|
A. |
Refer to Removal and Installation . |
B. |
To air duct 1. Refer to Exploded View . |
C. |
To intake manifold. Refer to Exploded View . |
|
D. |
Refer to Removal and Installation . |
