Exploded View

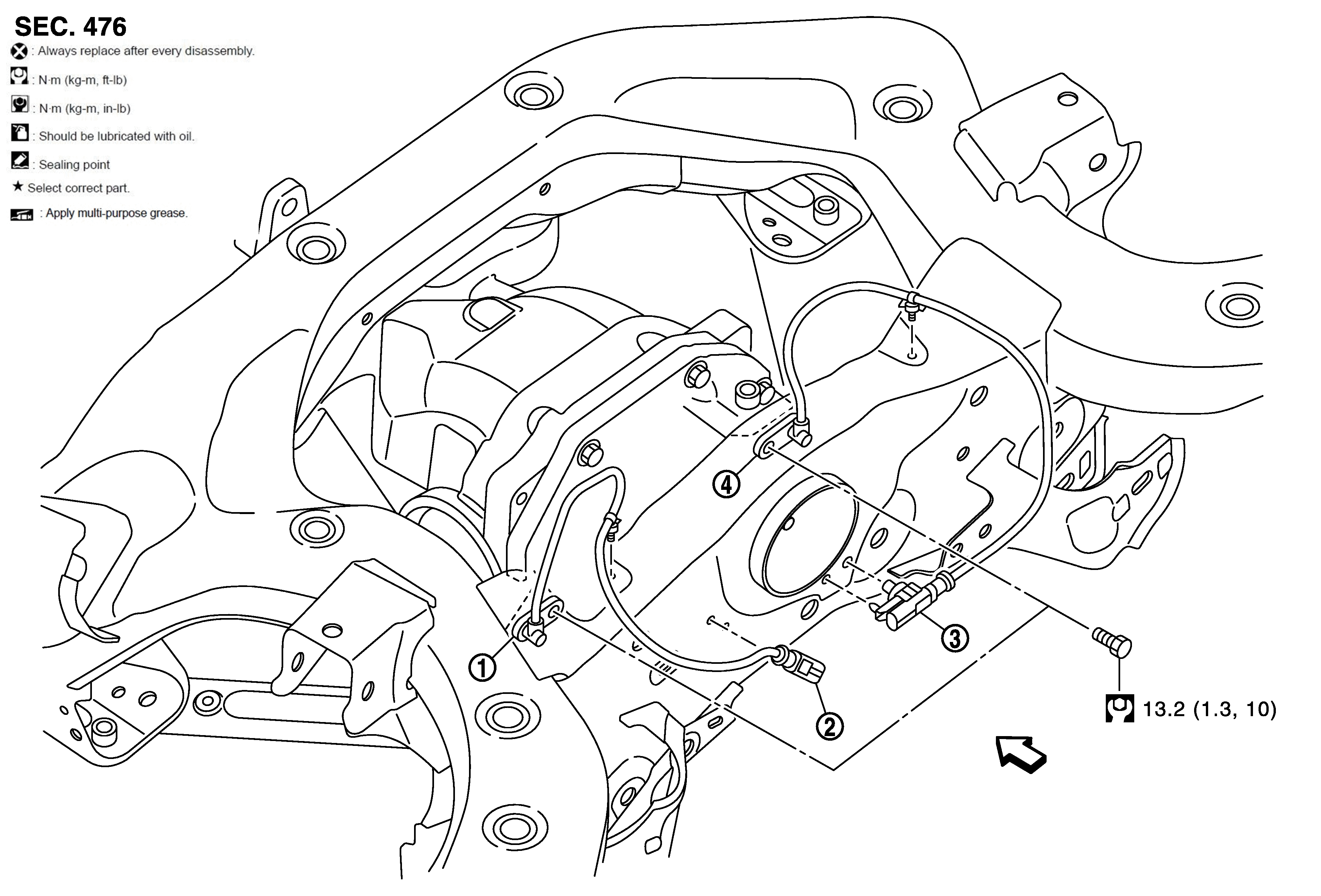

Fig 1: Rear Wheel Sensor With Torque Specifications
GNSJPFIC0102GB-102SYMBOLSYMBOLSYMBOLSYMBOLCourtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Rear LH wheel sensor

SYMBOL

Rear LH wheel sensor harness connector

SYMBOL

Rear RH wheel sensor harness connector

SYMBOL

Rear RH wheel sensor

SYMBOL : Vehicle front

SYMBOL : N.m (kg-m, ft-lb)
