Component Location

WARNING: This page is about a different car, the 2019 Infiniti Q60. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

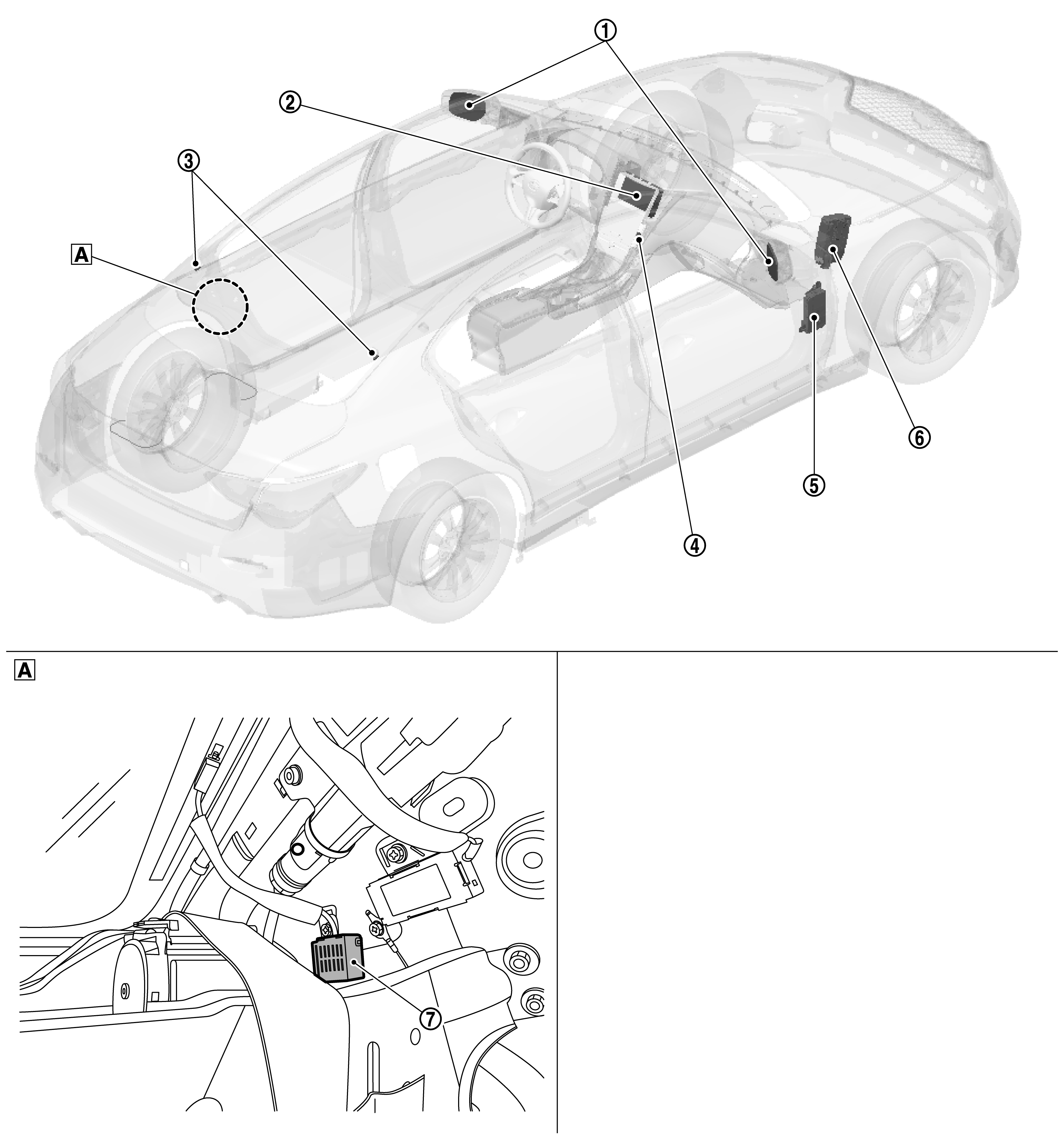

Behind left rear pillar finisher

No.	Component	Function
	Door mirror defogger	Refer to Door mirror defogger .
	Display control unit	Display control unit transmits rear window defogger switch signal to BCM via CAN communication. Display control unit transmits rear window defogger feedback signal to integral switch. Refer to Component Location for detailed installation location.
	Rear window defogger	Refer to Rear window defogger .
	Integral switch (Rear window defogger switch)	Rear window defogger switch is installed. Turns the indicator lamp ON when detecting the operation of rear window defogger Refer to Component Location for detailed installation location.
	BCM	Receives rear window defogger switch signal. Performs the timer control of rear window defogger. Refer to Component Location .
	IPDM E/R	Transmits rear window defogger control signal to display control unit via CAN communication Refer to Component Location .
	Condenser	Reduce the noise of rear window defogger operation.
