Component Location

WARNING: This page is about a different car, the 2019 Infiniti Q60. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

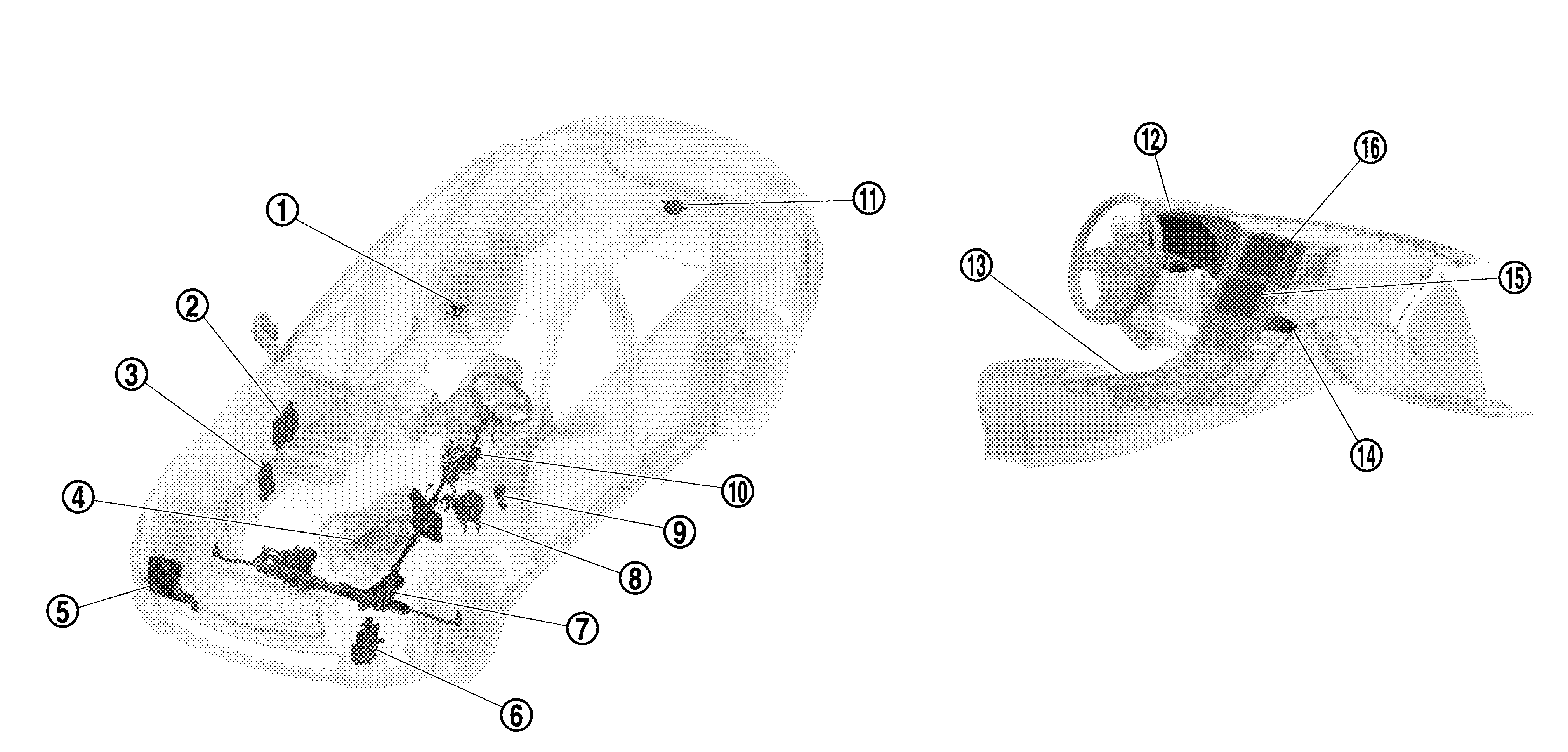

No.	Component	Function
	Lane camera unit	Refer to Lane Camera Unit .
	Steering force control module	Direct Adaptive Steering is controlled by three control modules of steering force control module, steering angle main control module and steering angle sub control module. Receives steering reaction force request signal and controls the steering reaction force. For the details of the location, refer to Component Location .
	BCM	Transmits turn indicator signal and front wiper request signal to chassis control module via CAN communication. For the details of the location, refer to Component Location .
	TCM	Transmits the signal related to A/T control to chassis control module via CAN communication.
	Steering angle sub control module	Direct Adaptive Steering is controlled by three control modules of steering force control module, steering angle main control module and steering angle sub control module. Receives steering angle request signal and controls the steering angle. For the details of the location, refer to Component Location .
	Steering angle main control module	Direct Adaptive Steering is controlled by three control modules of steering force control module, steering angle main control module and steering angle sub control module. Receives steering angle request signal and controls the steering angle. For the details of the location, refer to Component Location .
	Steering gear assembly (Steering angle actuator)	Drives steering gear depending on the control signal from Direct Adaptive Steering.
	ABS actuator and electric unit (control unit)	Transmits the vehicle speed signal (wheel speed) to chassis control module via CAN communication. Transmits the yaw rate signal and side G sensor signal to chassis control module via CAN communication. For the details of the location, refer to Component Location .
	Chassis control module	Performs Active Lane Control based on the detected lane condition signal received from lane camera unit and each signal received from each unit. For the details of the location, refer to Component Location .
	Steering column assembly (Steering force actuator)	Drives reaction force depending on the control signal from Direct Adaptive Steering.
	ADAS control unit	Transmits LDP ON signal to chassis control module via chassis communication. For the details of the location, refer to Component Location .
	Combination meter	Receives master warning signal and ALC system display signal to chassis control module via CAN communication to display the system on the information display.
	Drive mode select switch	Inputs drive mode select switch signal to chassis control module.
	A/C auto amp.	Transmits ambient temperature signal to chassis control module via CAN communication. For the details of the location, refer to Component Location .
	Integral switch	Changes setting of Active Lane Control and transmits the setting information to the display control unit.
	Display control unit	Transmits the setting state of Active Lane Control to chassis control module via CAN communication. For the details of the location, refer to Component Location .
