Lane Camera Unit Handling

WARNING: This page is about a different car, the 2019 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

To keep the proper operation of the forward emergency braking system and prevent a system malfunction, be sure to observe the following:

Always keep the windshield clean.
Do not attach a sticker (including transparent material) or install an accessory near the lane camera unit.
Do not place reflective materials, such as white paper or a mirror, on the instrument panel. The reflection of sunlight may adversely affect the lane camera unit capability of detecting the lane markers.
Do not strike or damage the areas around the camera unit. Do not touch the camera lens or remove the screw located on the camera unit. If the camera unit is damaged due to an accident.

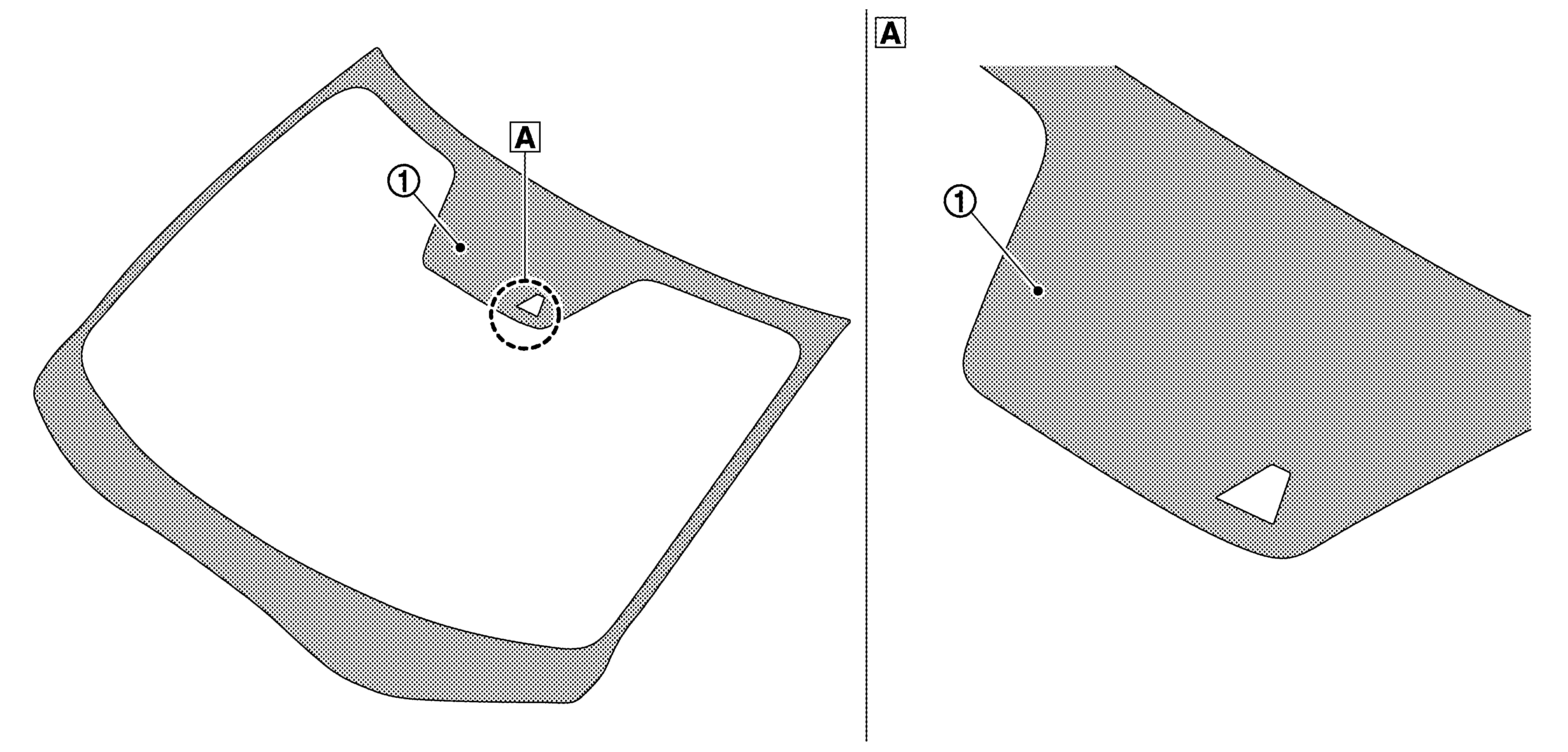

NOTE: For operating the system normally, replace the windshield glass in the following case.

When there is a scratch on the area printed in black of windshield upper portion.

Courtesy of NISSAN NORTH AMERICA, INC.

	Area printed in black
	Detail
