System Diagram

WARNING: This page is about a different car, the 2019 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

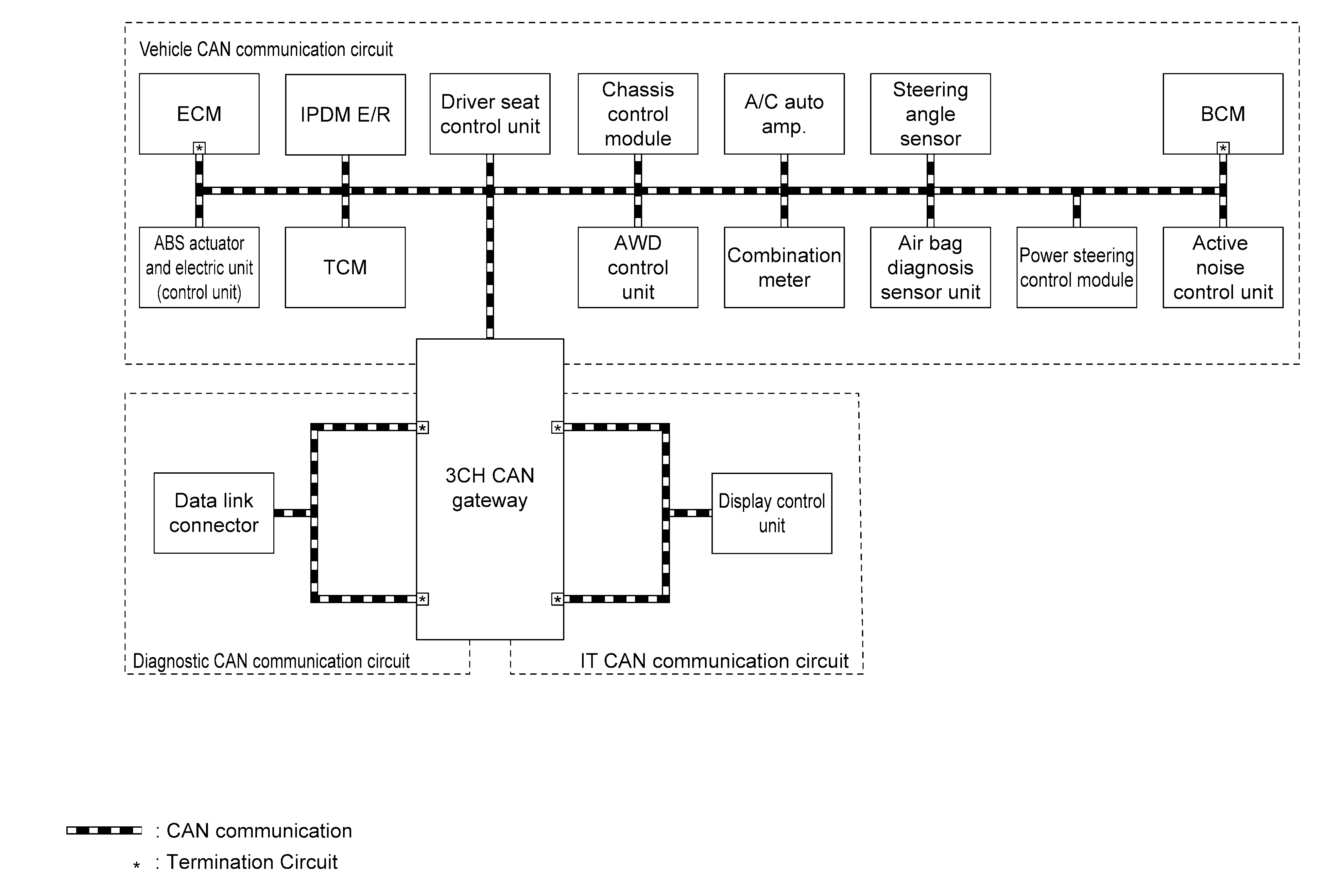

2.0L Turbo Gasoline Engine Models

Courtesy of NISSAN NORTH AMERICA, INC.

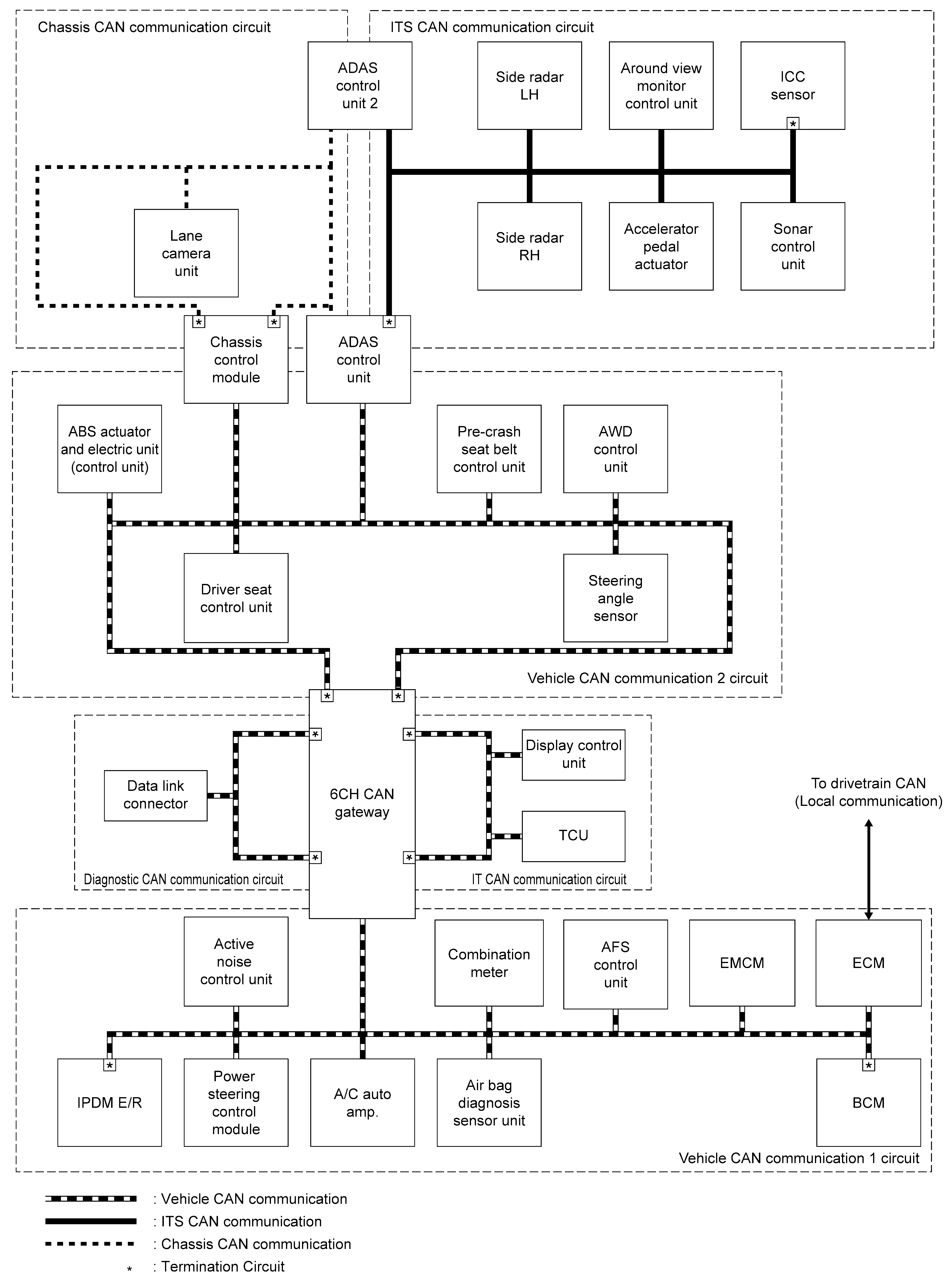

VR Engine 2WD Models without Telematics System and Forward Emergency Braking

Courtesy of NISSAN NORTH AMERICA, INC.

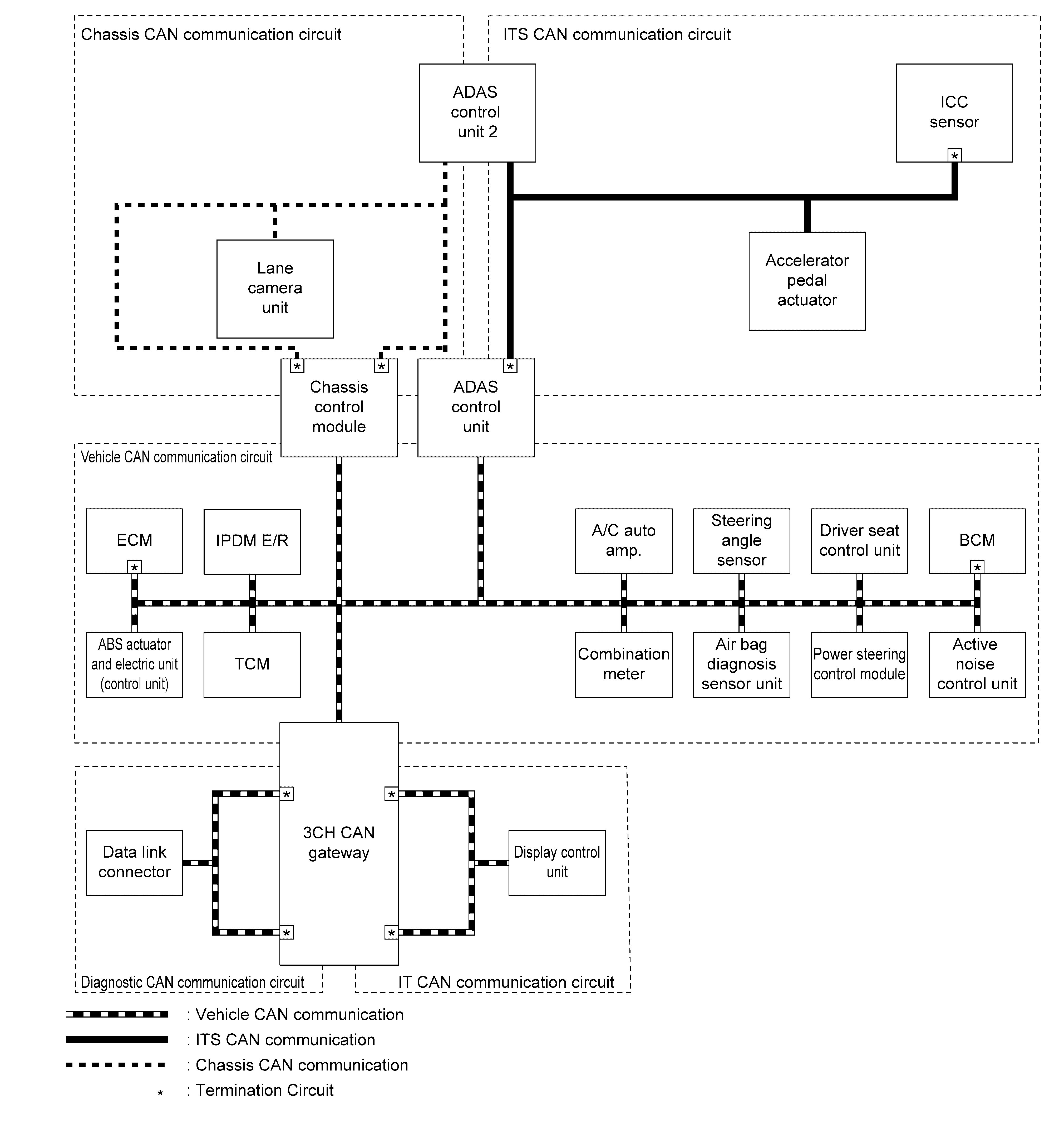

VR Engine 2WD Models without Telematics System with Forward Emergency Braking (Except for Mexico)

Courtesy of NISSAN NORTH AMERICA, INC.

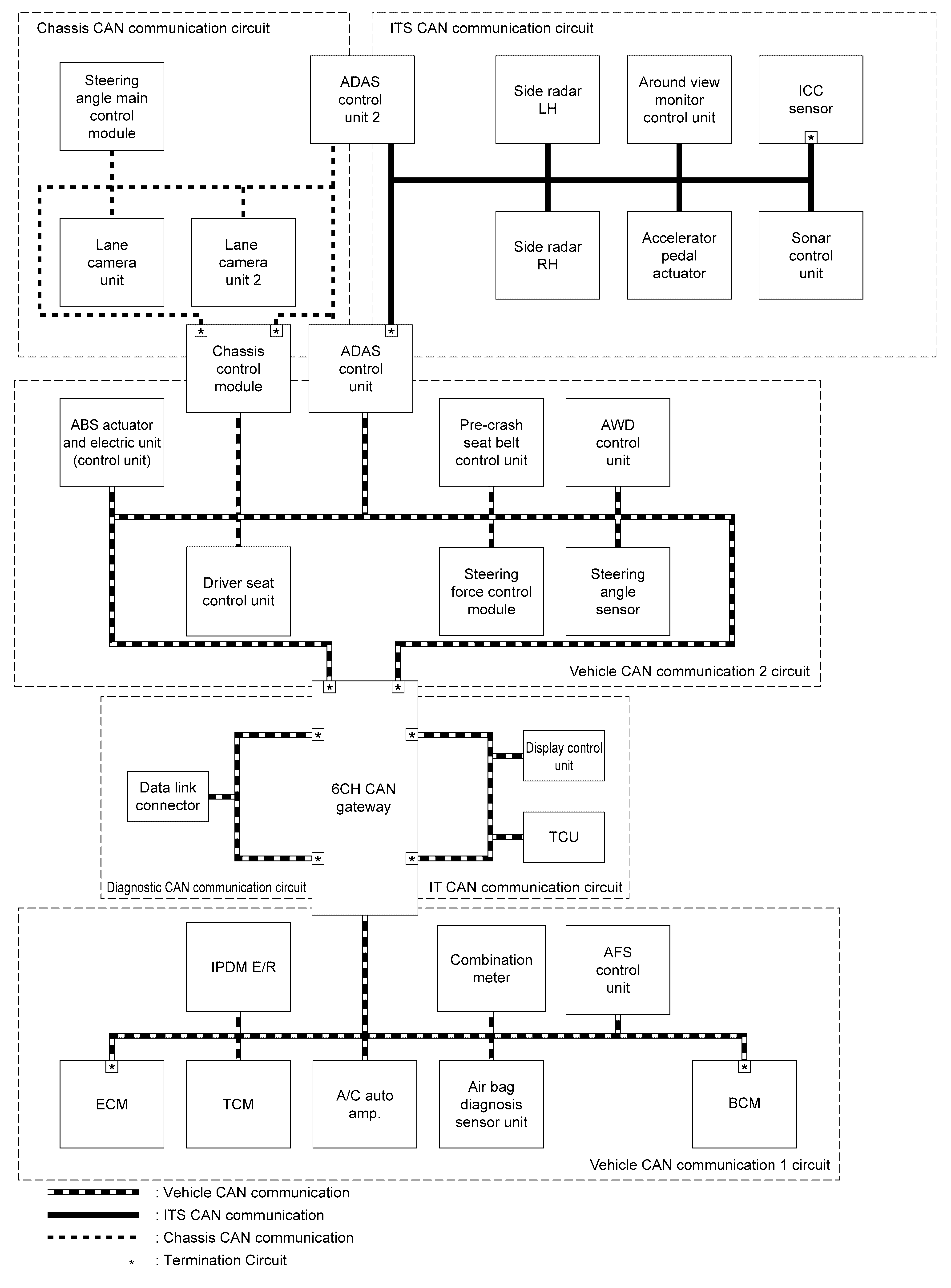

VR Engine without Direct Adaptive Steering (2WD Models with Telematics System or AWD Models)

Courtesy of NISSAN NORTH AMERICA, INC.

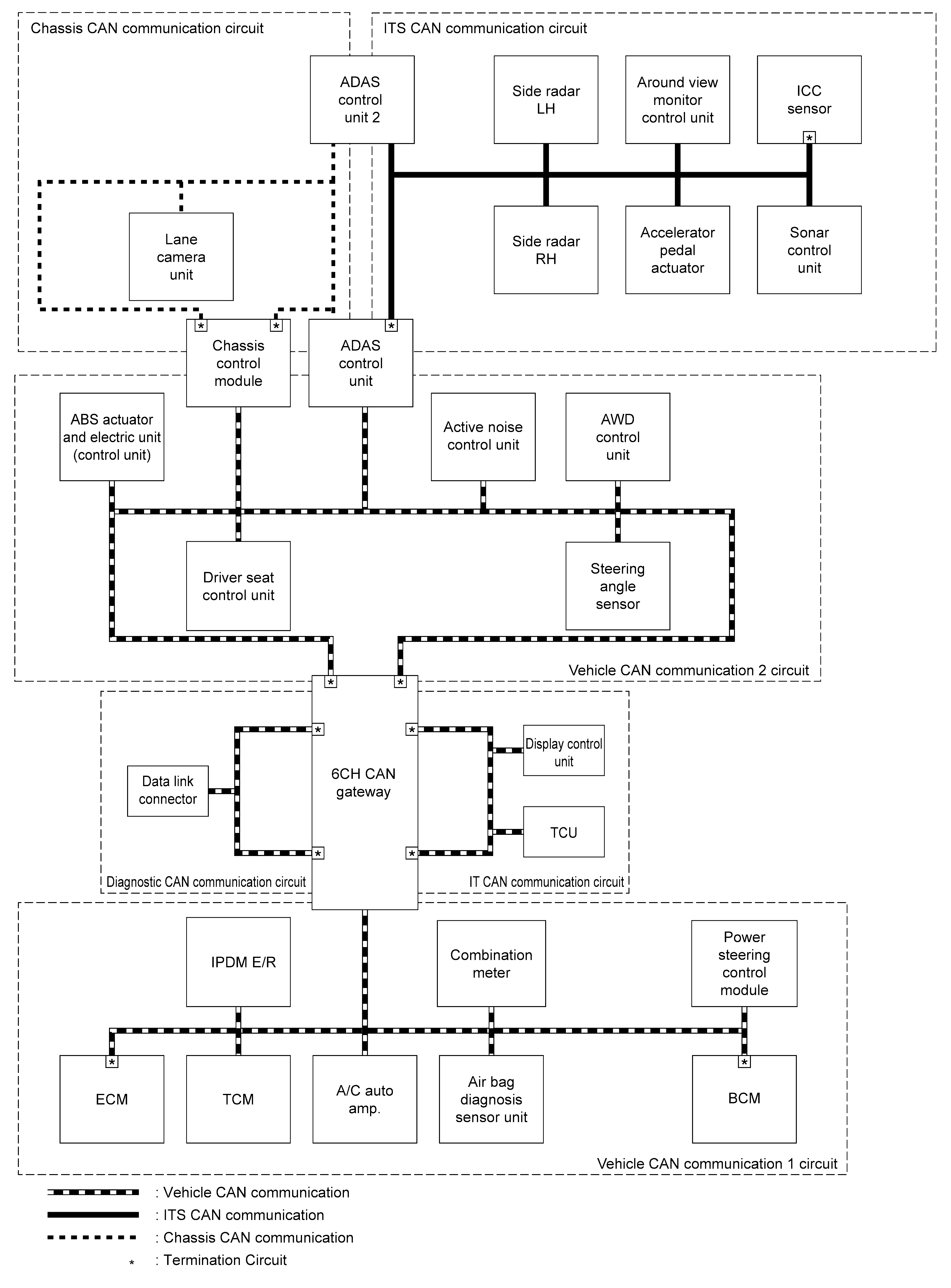

VR Engine 2WD Models with Direct Adaptive Steering

Courtesy of NISSAN NORTH AMERICA, INC.
