Removal and Installation: Installation
Note the following and install in the reverse order of removal.
CAUTION:

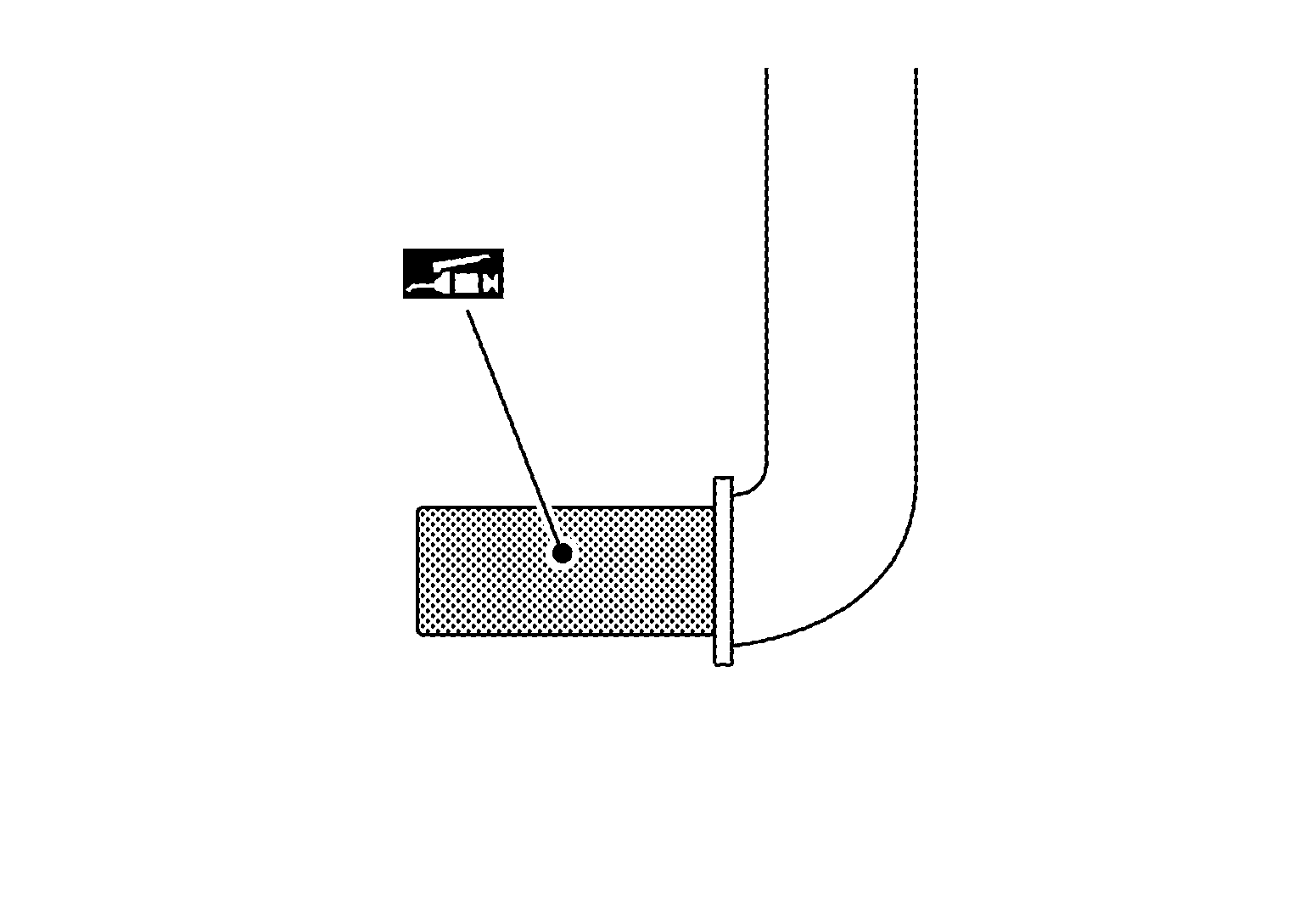

- Apply multi-purpose grease on the pin surface (that slides after installing collar) of the tip of the control rod.
- When tightening manual lever mounting nut, set manual lever in "N" position and fix manual lever to prevent it from moving.

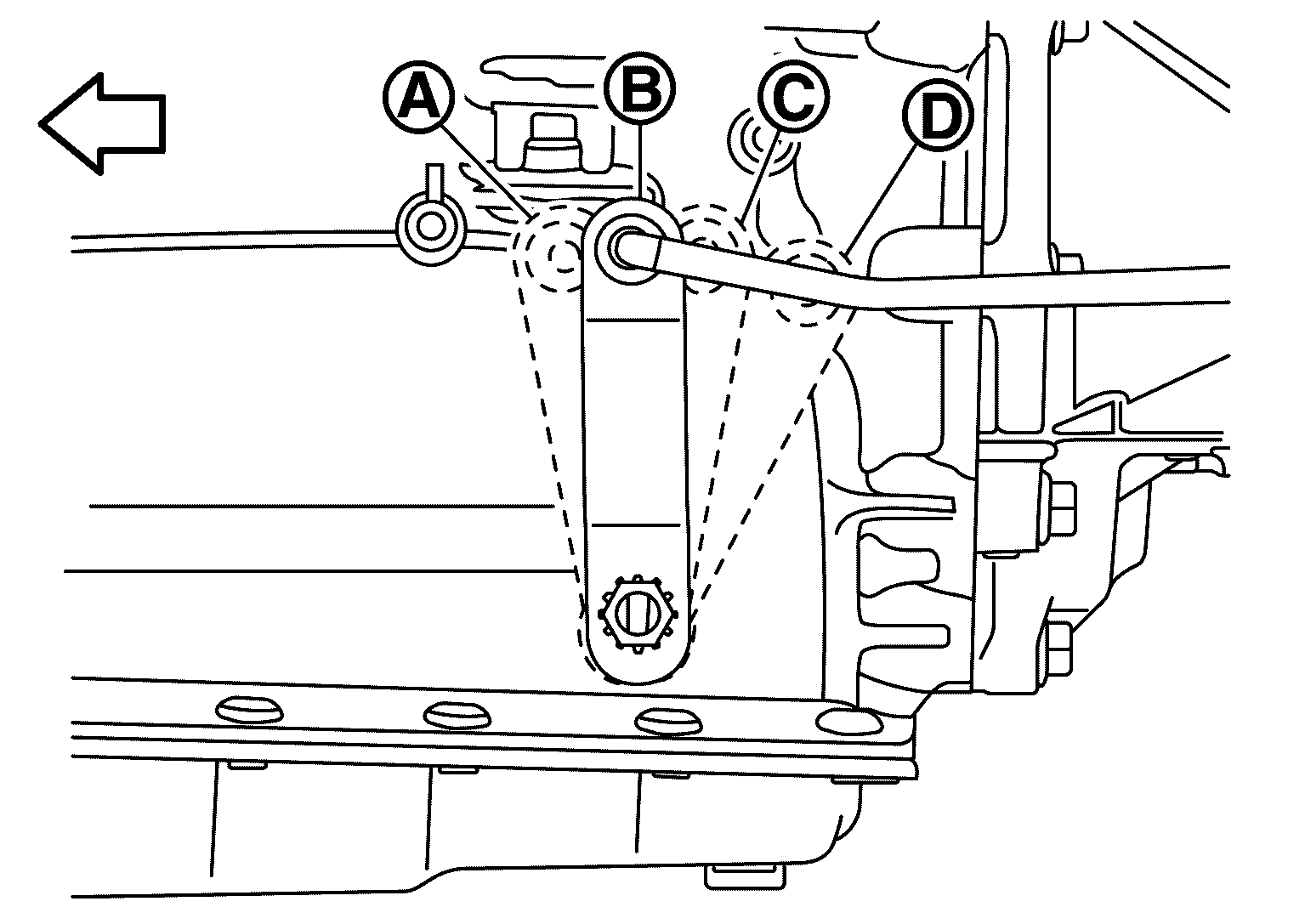

: D position
: N position
: R position
: P position
: Vehicle front
