Work Procedure
- Place manual lever and selector lever in "P" position.

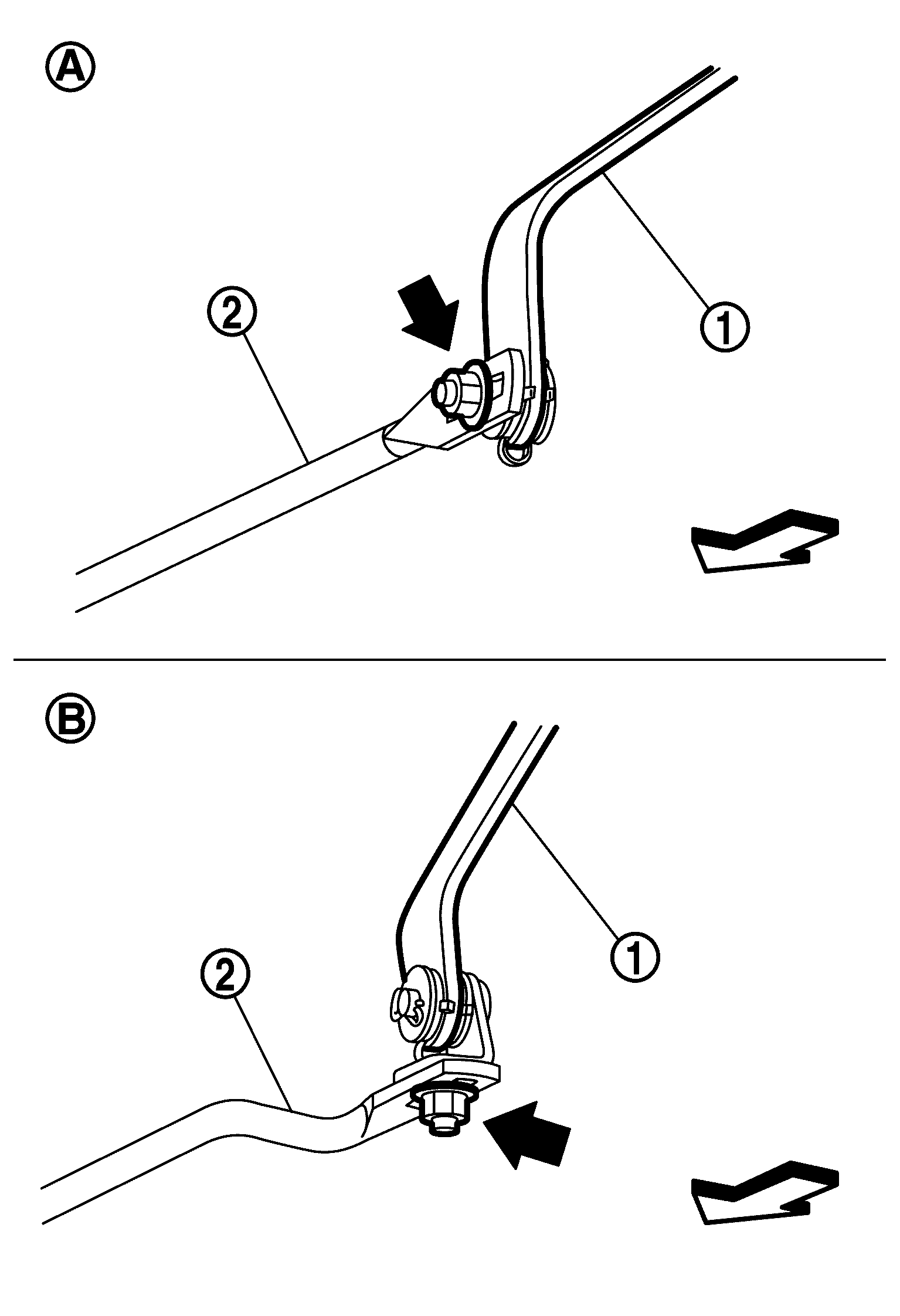

- Loosen nut (
).
|
|
: 2WD models (Not applicable) |
|
|
: AWD models |
|
|
: Vehicle front |
- While pressing lower lever
toward rear of vehicle (in "P" position direction), tighten nut to specified torque. Refer to A/T SHIFT SELECTOR : Exploded View .
CAUTION:
Be careful not to touch the control rod
while pressing lower lever of A/T shift selector assembly.
NOTE:
Press lower lever of A/T shift selector assembly with a force of 9.8 N (approximately 1 kg, 2.2 lb).
