TELEMATICS SWITCH Connector End View (R22)

Connector Types:   TH08FW-NH

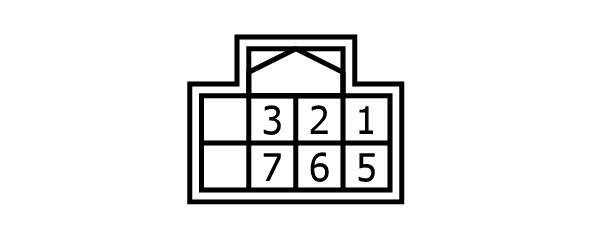

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

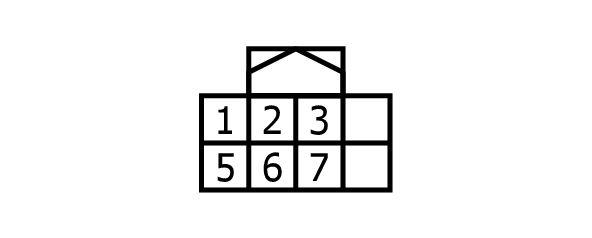

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
1	V	-
2	B	-
3	G	-
5	SB	-
6	B	-
7	B	-
