DIODE Connector End View (M9)

Connector Types:   24335_4GA0A

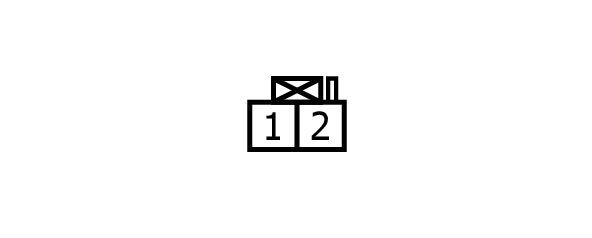

Fig 1: Terminal-side
GNSW66143Courtesy of NISSAN NORTH AMERICA

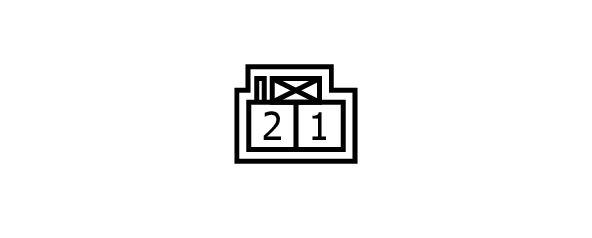

Fig 2: Harness-side
GNSW66364Courtesy of NISSAN NORTH AMERICA
Terminal No. Color of Wire Signal Name (Specification)
1 P -
2 B -
