DIODE Connector End View (M8)

Connector Types:   24335_4GA0A

Fig 1: Terminal-side
GNSW66551Courtesy of NISSAN NORTH AMERICA

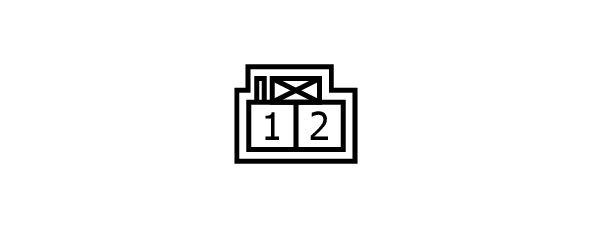

Fig 2: Harness-side
GNSW65905Courtesy of NISSAN NORTH AMERICA
Terminal No. Color of Wire Signal Name (Specification)
1 L -
2 LG -
