COMPRESSOR Connector End View (F64)

Connector Types:   RK02FGY

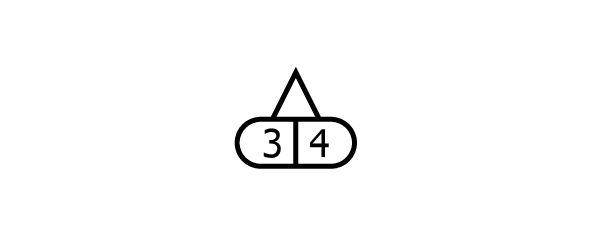

Fig 1: Terminal-side
GNSW65982Courtesy of NISSAN NORTH AMERICA

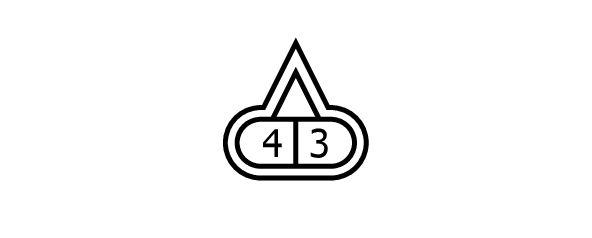

Fig 2: Harness-side
GNSW65671Courtesy of NISSAN NORTH AMERICA
Terminal No. Color of Wire Signal Name (Specification)
3 LG -
4 Y -
