COMPRESSOR Connector End View (F1)

Connector Types:   RH02FB

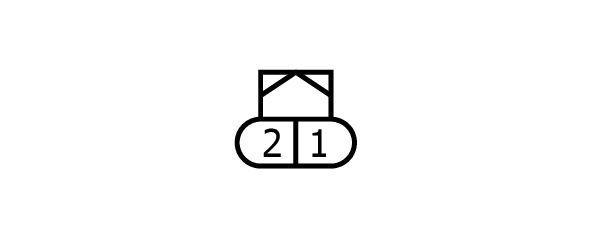

Fig 1: Terminal-side
GNSW66357Courtesy of NISSAN NORTH AMERICA

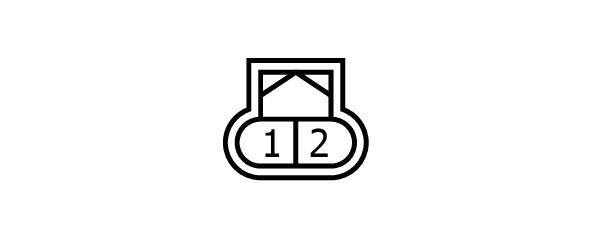

Fig 2: Harness-side
GNSW65431Courtesy of NISSAN NORTH AMERICA
Terminal No. Color of Wire Signal Name (Specification)
1 L -
2 B -
