BRAKE FLUID LEVEL SWITCH Connector End View (E4)

Connector Types:   YV02FGY

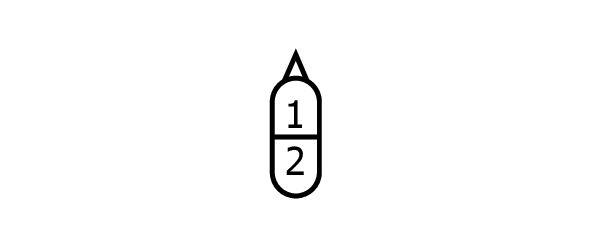

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

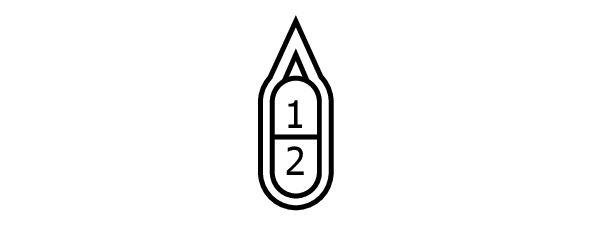

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
1	V	-
2	B/W	BRAKE FLUID LEVEL SWITCH GROUND
